Product Description

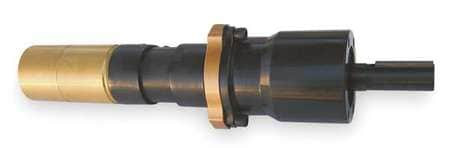

INGERSOLL-RAND 4840M - AIR GEARMOTOR,3.2 HP,95 CFM,975 RPM - AIR GEARMOTOR, 3.2 HP HP, RUNNING TORQUE @ MAX. PRESSURE 378 IN-LB, 95 CFM MAX. AIR FLOW, NO LOAD RPM 975 RPM, SHAFT DIA. 1 IN, SHAFT LENGTH 2.25 IN, FACE MOUNTING, PORT SIZE 1/2 IN NPT, REV ROTATION, HOUSING MATERIAL ALUMINUM AND STEEL, BLACK FINISH, STALL TORQUE 756 IN-LB, 485 RPM RPM @ MAX. TORQUE, GEAR RATIO 9:1, MAX. AIR PRESSURE 90 PSI, KEYWAY LENGTH 0.25 IN, OVERALL LENGTH 12.13 IN, OUTSIDE DIA. 4.0 IN, 0 DEGREES TO 150 DEGREES F OPERATING TEMP. RANGE, INCLUDES PLANETARY GEARING - EQUAL TO G1543175
MANUFACTURER:
INGERSOLL-RAND
MANUFACTURER PART NUMBER:
4840M
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
16.65
CONTRACTOR PART NUMBER:
2510225173
MAS CONTRACT NUMBER:
47QSEA20D0043
