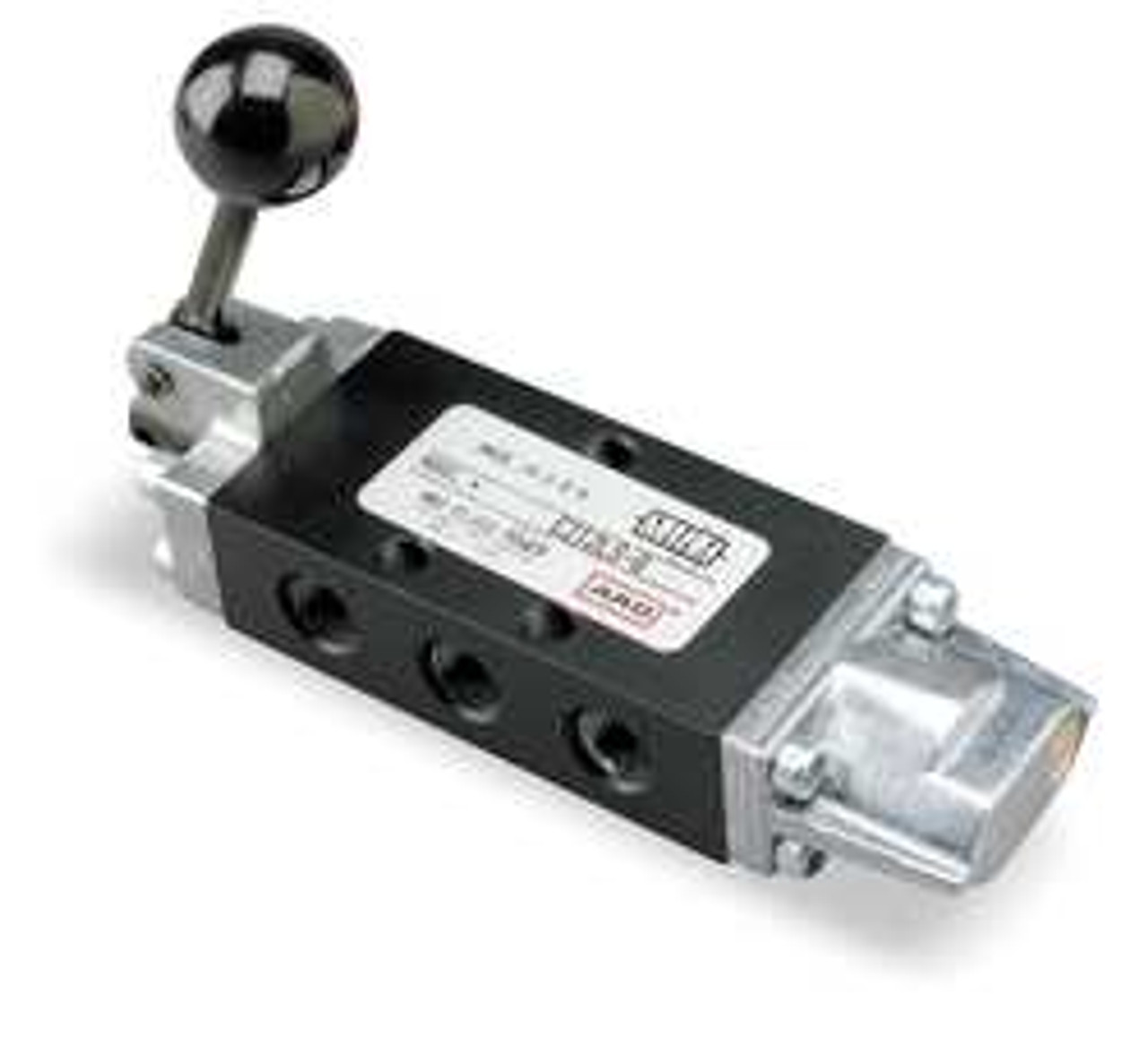

ARO E212LS MANUAL AIR CONTROL 4-WAY 2-POSITION 1/4

ARO E212LS - MANUAL AIR CONTROL 4-WAY 2-POSITION 1/4 - MANUAL AIR CONTROL VALVE VALVE WAYS AND POSITIONS 4-WAY/2-POSITION VALVE PORT SIZE 1/4 IN. CONNECTION NPT VALVE ACTUATOR / RETURN LEVER / SPRING MAX CFM - VALVES 26.00 VALVE MAX PRESSURE RATING 150 PSI VALVE TEMP RANGE -10 DEGREES TO 180 DEGREES F COEFFICIENT OF VOLUME 0.7 OVERALL LENGTH 6-7/32 IN. OVERALL HEIGHT 3-7/8 IN. OVERALL WIDTH 1-3/4 IN. SERIES E MANUAL AIR CONTROL VALVE - EQUAL TO 2G517
