Product Description

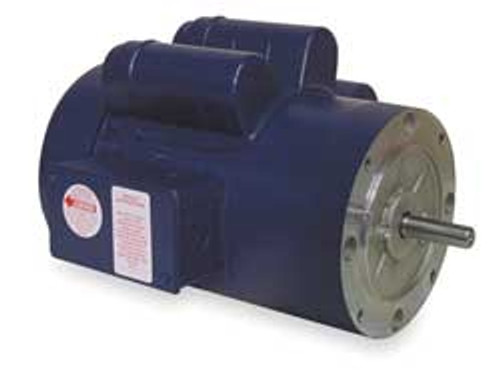

LEESON 113923.00 - 50 HZ MTR 3/4 HP 1425 110/220 V 56C TEFC - 50 HZ MOTOR CAPACITOR-START TOTALLY ENCLOSED FAN-COOLED 3/4 HP NUMBER OF SPEEDS 1 NAMEPLATE RPM 1425 VOLTAGE 110/220 HZ 50 1 PHASE FULL LOAD AMPS 11.8/5.9 56C FRAME MOUNTING FACE THERMAL PROTECTION MANUAL INSULATION CLASS F 1.00 SERVICE FACTOR BEARINGS BALL ROTATION CW/CCW AMBIENT TEMPERATURE 40 DEGREES C SHAFT DIA 5/8 IN. SHAFT LENGTH 1-7/8 IN. LENGTH LESS SHAFT 10-1/4 IN. RPM RANGE 1401-1500 - EQUAL TO G1260567
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
113923.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
30.51
CONTRACTOR PART NUMBER:
2510260035
MAS CONTRACT NUMBER:
47QSEA20D0043
