Product Description

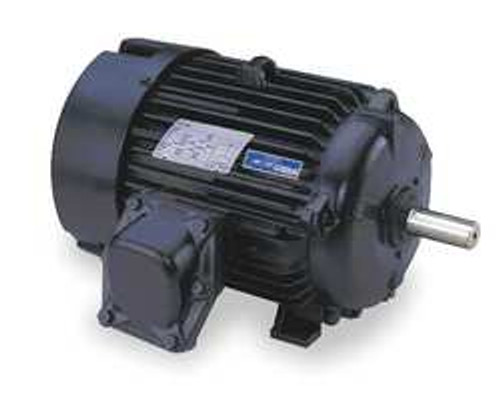

MARATHON 326TSTGS6501 - HAZARDOUS LOC MTR 3 PH TEFC 50 HP T3B - HAZARDOUS LOCATION MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 50 HP 3555 NAMEPLATE RPM 326TS FRAME NEMA DESIGN B CW/CCW ROTATION VOLTAGE 230/460 FULL LOAD AMPS 118/59 PHASE 3 60/50 HZ FOOT MOUNTING BALL BEARINGS FRAME MATERIAL CAST IRON THERMAL PROTECTION T-STAT SERVICE FACTOR 1.15 HAZARDOUS LOCATION CLASS 1 C D / 2 F G MAX AMBIENT TEMP 40 DEGREES C TEMP CODE T3B SHAFT DIA 1-7/8 IN. SHAFT LENGTH 3-3/4 IN. OVERALL LENGTH 30-3/8 IN. LEAD LENGTH 6 IN. F INSULATION CLASS - EQUAL TO G3530746
MANUFACTURER:
MARATHON
MANUFACTURER PART NUMBER:
326TSTGS6501
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
820
CONTRACTOR PART NUMBER:
2510278862
MAS CONTRACT NUMBER:
47QSEA20D0043
