Product Description

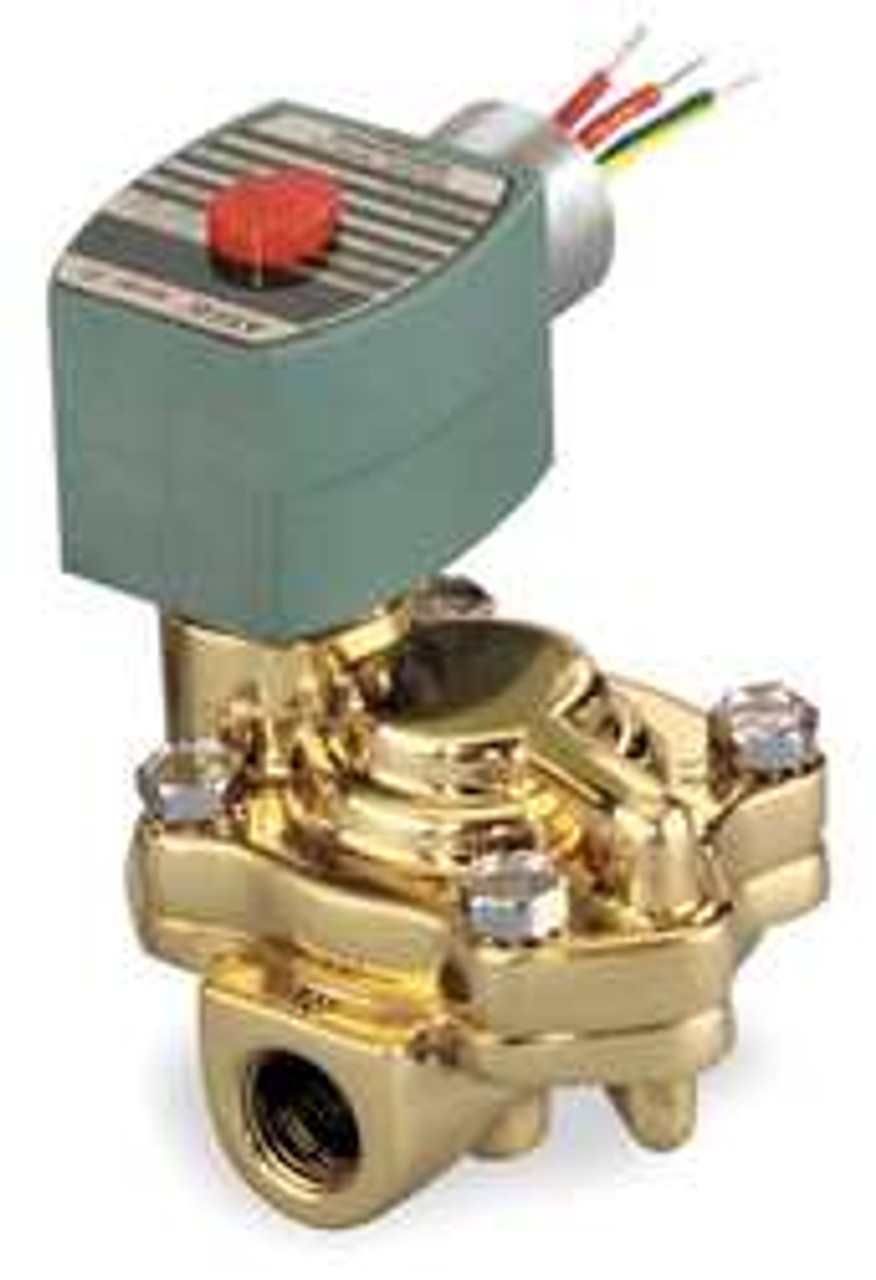

RED HAT 8221G001 - SOLENOID VALVE 2/2 3/8 IN NC 120/110V - SLOW CLOSING SOLENOID VALVE BODY MATERIAL BRASS MEDIA WATER 2-WAY/2-POSITION NORMALLY CLOSED PIPE SIZE 3/8 IN. ORIFICE DIA 9/16 IN. COEFFICIENT OF VOLUME 3.00 MIN OPERATING PRESSURE DIFFERENTIAL 5 PSI MAX OPERATING PRESSURE DIFFERENTIAL WATER 150 PSI COIL INSULATION CLASS F NEMA RATING 1 2 3 3S 4 4X IP RATING 66 MAX FLUID TEMP 180 DEGREES F VOLTAGE 110/120VAC 50/60 HZ WATTS 6.1 SEAL MATERIAL NBR COIL ENCLOSURE WATERTIGHT NO JUNCTION BOX - EQUAL TO 3UL35
MANUFACTURER:
RED HAT
MANUFACTURER PART NUMBER:
8221G001
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
2.75
CONTRACTOR PART NUMBER:
2510430153
MAS CONTRACT NUMBER:
47QSEA20D0043
