Product Description

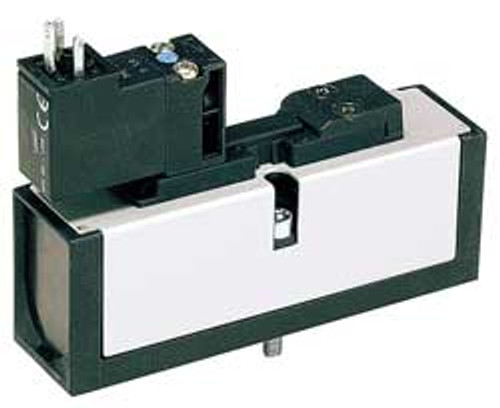

SPEEDAIRE 3FFW5 - SOLENOID AIR CONTROL VALVE 1/8 IN 24VDC - SOLENOID AIR CONTROL VALVE 4-WAY 3-POSITION CLOSED CENTER POSITION ACTUATOR/RETURN SOLENOID/SOLENOID BODY STYLE BASE MOUNTED ISO CLASS 15407-1 PIPE SIZE 1/8 IN. VOLTAGE 24VDC PILOT PORT SIZE 1/8 IN NPT COEFFICIENT OF VOLUME 0.4 3-PIN DIN 43560C ELECTRICAL CONNECTIONS SHIFTING TECHNOLOGY CERAMIC PLATE POWER CONSUMPTION 1.2W PRESSURE RANGE VACUUM TO 145 VACUUM RANGE 145 PSIG AMBIENT TEMP RANGE 14 DEGREES TO 145 DEGREES F OVERRIDE NON-LOCKING OVERALL HEIGHT 3 IN. - EQUAL TO 3FFW5
MANUFACTURER:
SPEEDAIRE
MANUFACTURER PART NUMBER:
3FFW5
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
FRANCE
ORDER INCREMENT:
1
WEIGHT:
0.5
CONTRACTOR PART NUMBER:
2510477608
MAS CONTRACT NUMBER:
47QSEA20D0043
