Product Description

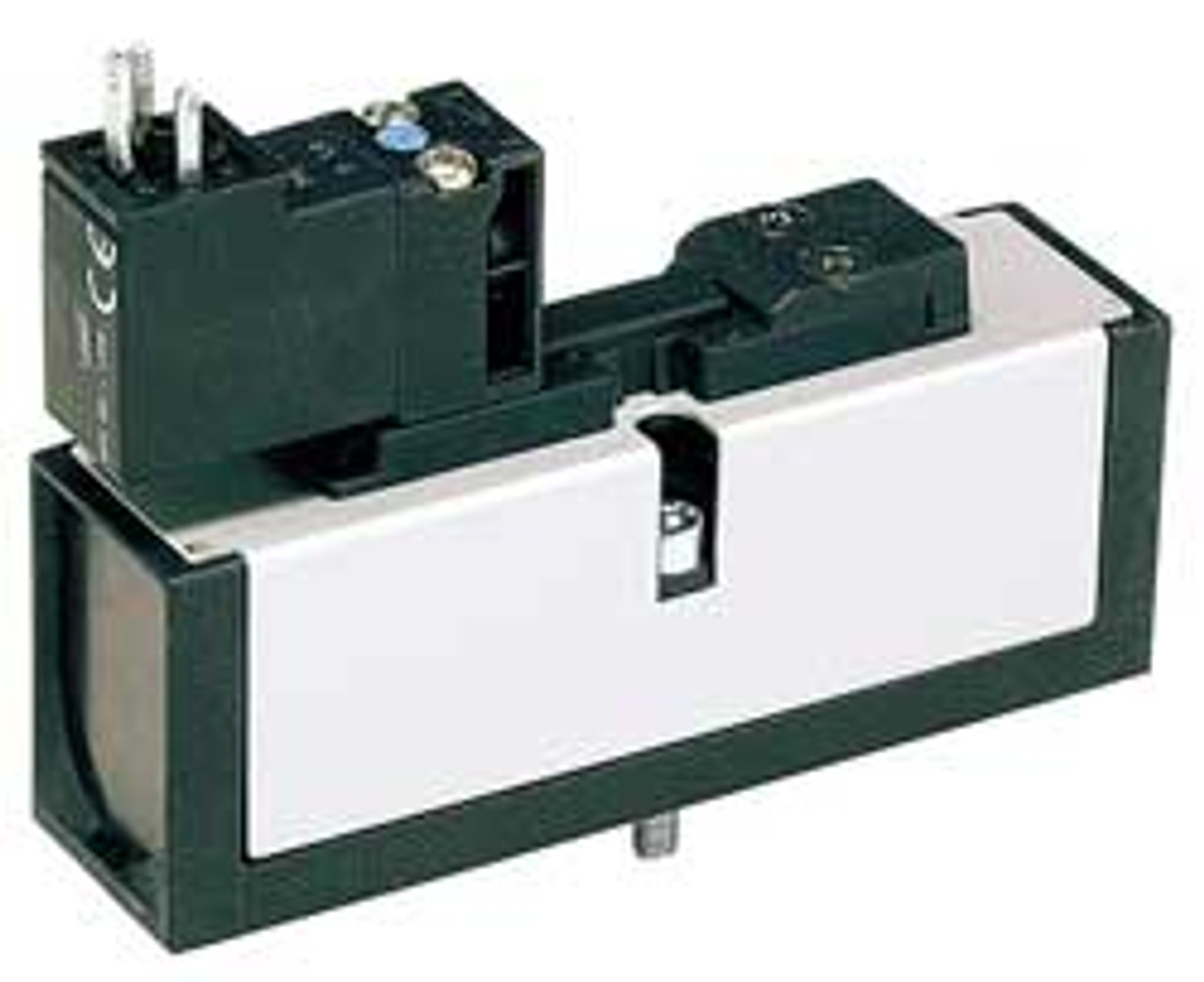

SPEEDAIRE 3FFZ9 - SOLENOID AIR CONTROL VALVE 1/4 IN 24VDC - SOLENOID AIR CONTROL VALVE 4-WAY 2-POSITION ACTUATOR/RETURN SOLENOID/SPRING AIR ASSIST BODY STYLE MANIFOLD ISO CLASS 15407-1 PIPE SIZE 1/4 IN. VOLTAGE 24VDC PILOT PORT SIZE 1/4 IN NPT COEFFICIENT OF VOLUME 0.75 3-PIN DIN 43560C ELECTRICAL CONNECTIONS SHIFTING TECHNOLOGY CERAMIC PLATE POWER CONSUMPTION 1.2W PRESSURE RANGE VACUUM TO 145 VACUUM RANGE 145 PSIG AMBIENT TEMP RANGE 14 DEGREES TO 145 DEGREES F OVERRIDE NON-LOCKING OVERALL HEIGHT 3 IN. OVERALL LENGTH 4 IN. - EQUAL TO G2695174
MANUFACTURER:
SPEEDAIRE
MANUFACTURER PART NUMBER:
3FFZ9
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
FRANCE
ORDER INCREMENT:
1
WEIGHT:
0.45
CONTRACTOR PART NUMBER:
2510477638
MAS CONTRACT NUMBER:
47QSEA20D0043
