Product Description

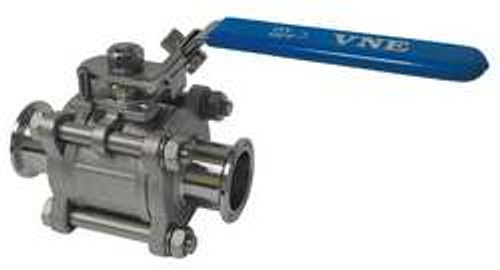

VNE EG90CC-61.5 - SANITARY BALL VALVE 316 SS 2-WAY CLAMP - SANITARY BALL VALVE BODY MATERIAL 316 STAINLESS STEEL 2-WAY PIPE SIZE 1-1/2 IN. CONNECTION TYPE CLAMP MAX PRESSURE 1000 PSI TEMP RANGE -65 DEGREES TO 320 DEGREES F SURFACE FINISH 20 RA I.D. 3-PIECE FULL PORT BALL MATERIAL 316 STAINLESS STEEL HANDLE MATERIAL AISI-304 STAINLESS STEEL HANDLE TYPE PAD LOCKABLE OVERALL LENGTH 5-1/2 IN. SEAL MATERIAL PTFE SEAT MATERIAL PTFE STEM MATERIAL 316 STAINLESS STEEL STEM TYPE BLOW OUT PROOF FEATURES ISO 5211 MOUNTING PAD - EQUAL TO G4359354
MANUFACTURER:
VNE
MANUFACTURER PART NUMBER:
EG90CC-61.5
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
TAIWAN, REPUBLIC OF CHINA
ORDER INCREMENT:
1
WEIGHT:
5.75
CONTRACTOR PART NUMBER:
2510527058
MAS CONTRACT NUMBER:
47QSEA20D0043
