Product Description

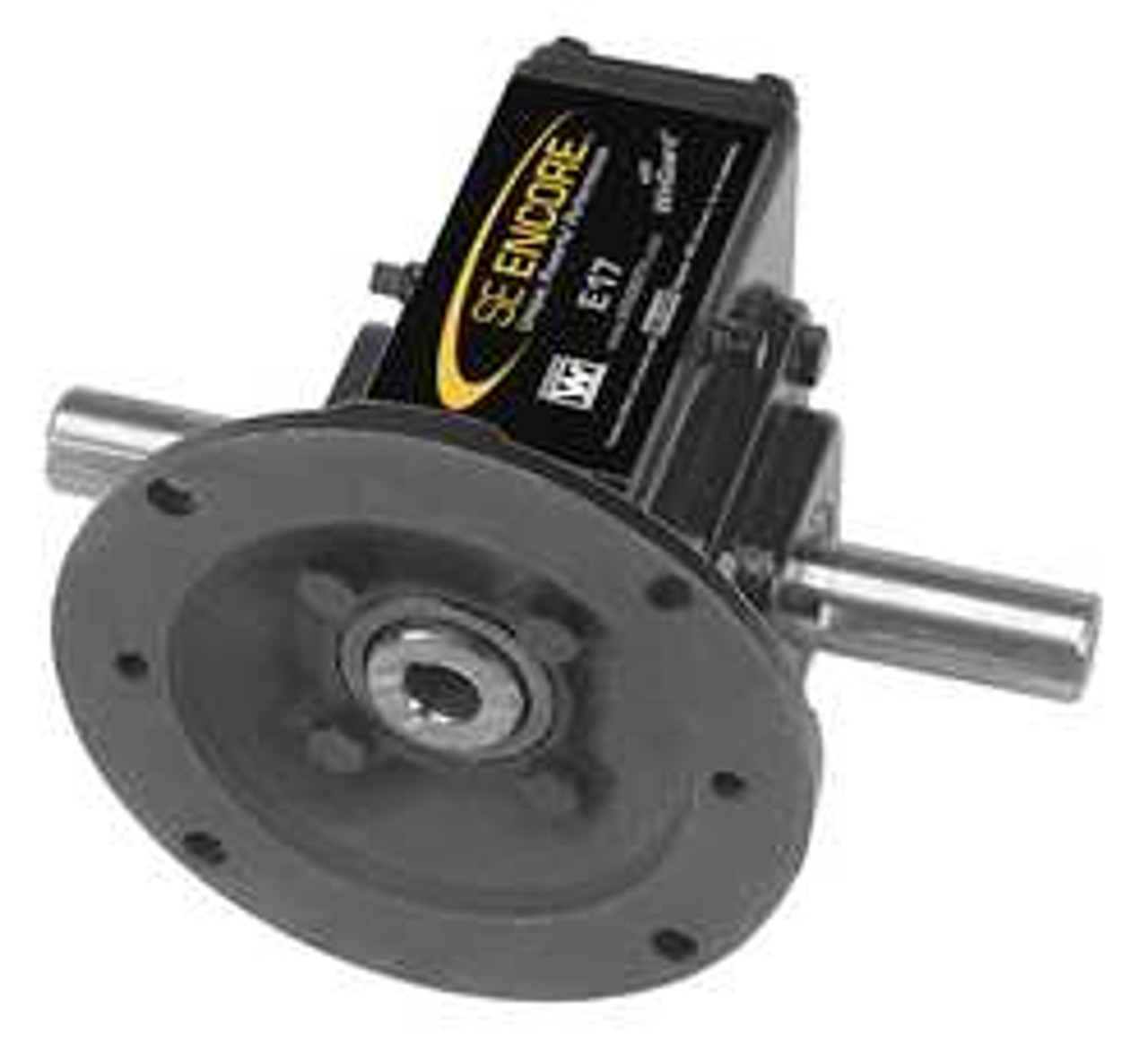

WINSMITH E26MWNS 80:1 56C - SPEED REDUCER C-FACE 56C 80 1 - SPEED REDUCER C-FACE RIGHT ANGLE SHAFT ORIENTATION WASHDOWN DUTY 1725 INPUT RPM 22 NOMINAL OUTPUT RPM WORM CENTER DISTANCE 2.63 IN. BORE DIA 1-1/4 IN. 56C FRAME OVERHUNG LOAD 1025 LB. 80 1 NOMINAL RATIO MAX INPUT HP 0.5 MAX TORQUE 979 IN.-LB. NUMBER OF STAGES 1 REVERSIBLE ROTATION UNIVERSAL MOUNTING WORM GEAR TYPE CAST IRON HOUSING MATERIAL DOUBLE OUTPUT OUTPUT SHAFT DIA 1-1/4 IN. OUTPUT SHAFT HEIGHT 3-1/8 IN. - EQUAL TO 4GAP3
MANUFACTURER:
WINSMITH
MANUFACTURER PART NUMBER:
E26MWNS 80:1 56C
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
43.55
CONTRACTOR PART NUMBER:
2510546062
MAS CONTRACT NUMBER:
47QSEA20D0043
