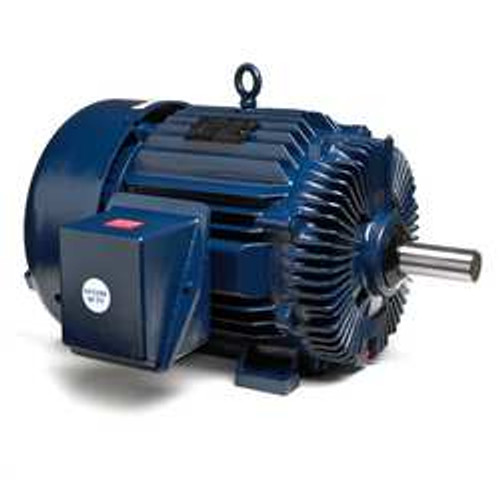

MARATHON 284TTFNA7240 CT MOTOR 3-PH TEFC 20 AND 5 HP

MARATHON 284TTFNA7240 - CT MOTOR 3-PH TEFC 20 AND 5 HP - COOLING TOWER MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 20 5 HP 1775/880 NAMEPLATE RPM 284T FRAME CW/CCW ROTATION 460 VOLTAGE 24/8.5 FULL LOAD AMPS 3 PHASE 60 HZ BASE MOUNTING MOUNTING POSITION HORIZONTAL BEARINGS BALL FRAME MATERIAL CAST IRON NONE THERMAL PROTECTION 1.15 SERVICE FACTOR AMBIENT TEMPERATURE 40 DEGREES C SHAFT DIA 1-7/8 IN. SHAFT LENGTH 4-13/16 IN. LENGTH LESS SHAFT 21-3/8 IN. OVERALL LENGTH 26-3/16 IN. INSULATION CLASS F RPM RANGE 1701-1800 - EQUAL TO 19YR31
