Product Description

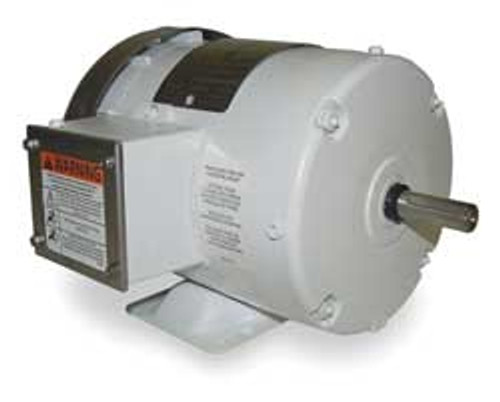

DAYTON 2DAK8 - WASHDOWN MOTOR 3 PH TEFC 3/4 HP 1725 RPM - WASHDOWN MOTOR 3-PHASE 3/4 HP 1725 NAMEPLATE RPM VOLTAGE 208-230/460 PHASE 3 56 FRAME TOTALLY ENCLOSED FAN-COOLED FULL LOAD AMPS 2.7-2.8/1.4 60 HZ BASE MOUNTING THERMAL PROTECTION NONE F INSULATION CLASS SERVICE FACTOR 1.15 BALL BEARINGS MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 10-7/8 IN. SHAFT DIA 5/8 IN. SHAFT LENGTH 1-7/8 IN. BODY DIA 6-1/2 IN. LENGTH LESS SHAFT 8-3/8 IN. CONTINUOUS DUTY FRAME MATERIAL EPOXY COATED - EQUAL TO G2823737
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
2DAK8
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
25.7
CONTRACTOR PART NUMBER:
2510720144
MAS CONTRACT NUMBER:
47QSEA20D0043
