Product Description

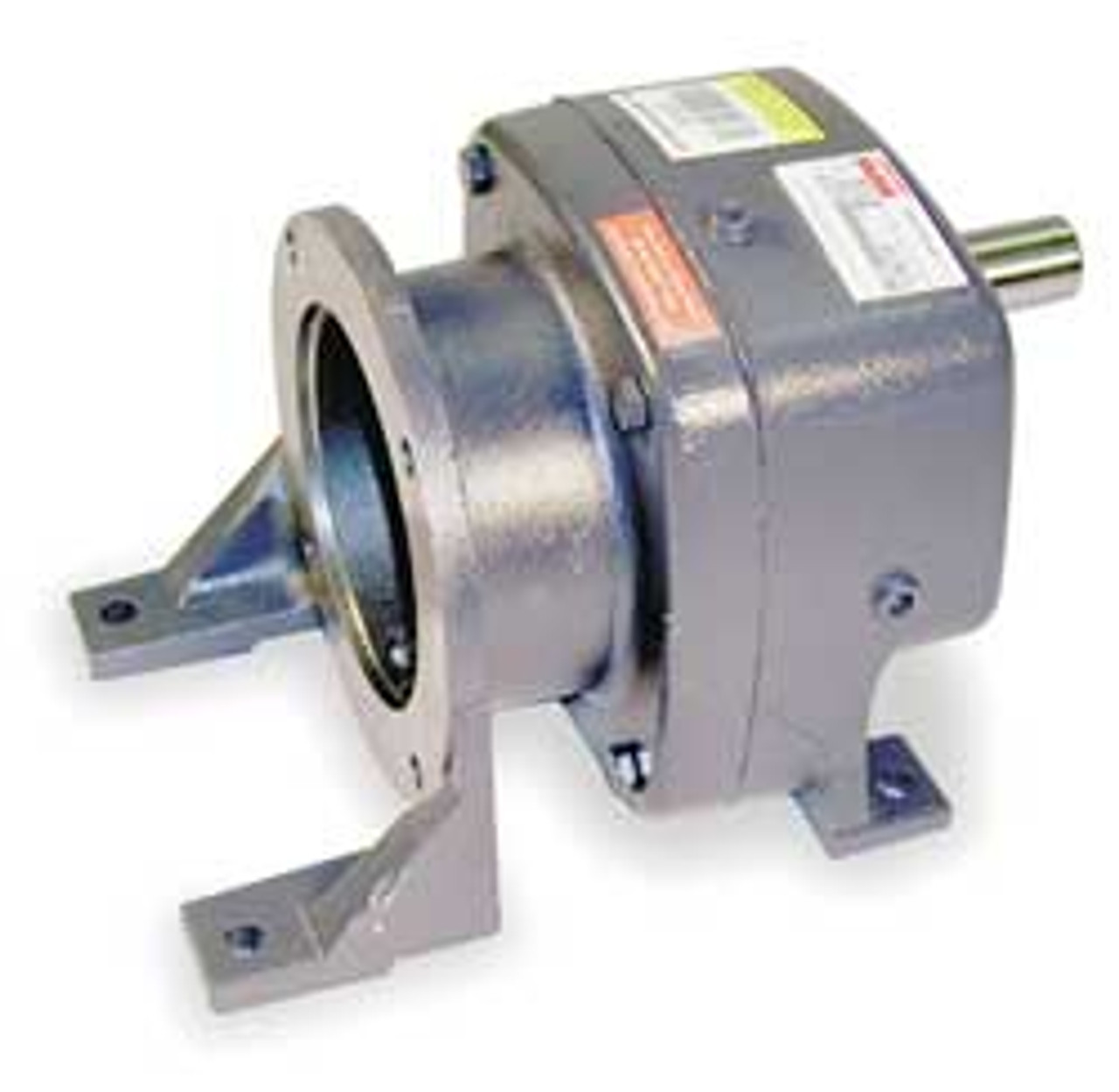

DAYTON 2Z935 - SPEED REDUCER C-FACE 56C 19 1 - SPEED REDUCER C-FACE PARALLEL/INLINE SHAFT ORIENTATION STANDARD DUTY 1750 INPUT RPM 91 NOMINAL OUTPUT RPM BORE DIA 5/8 IN. 56C FRAME OVERHUNG LOAD 660 LB. 19 1 NOMINAL RATIO MAX INPUT HP 0.5 MAX TORQUE 326 IN.-LB. NUMBER OF STAGES 1 FORWARD/REVERSIBLE ROTATION HORIZONTAL MOUNTING BALL BEARINGS HARDENED STEEL PINION MATERIAL HELICAL GEAR TYPE CAST IRON HOUSING MATERIAL SINGLE OUTPUT OUTPUT SHAFT DIA 1 IN. OUTPUT SHAFT HEIGHT 4-7/8 IN. - EQUAL TO G1638761
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
2Z935
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
31.2
CONTRACTOR PART NUMBER:
2510722179
MAS CONTRACT NUMBER:
47QSEA20D0043
