Product Description

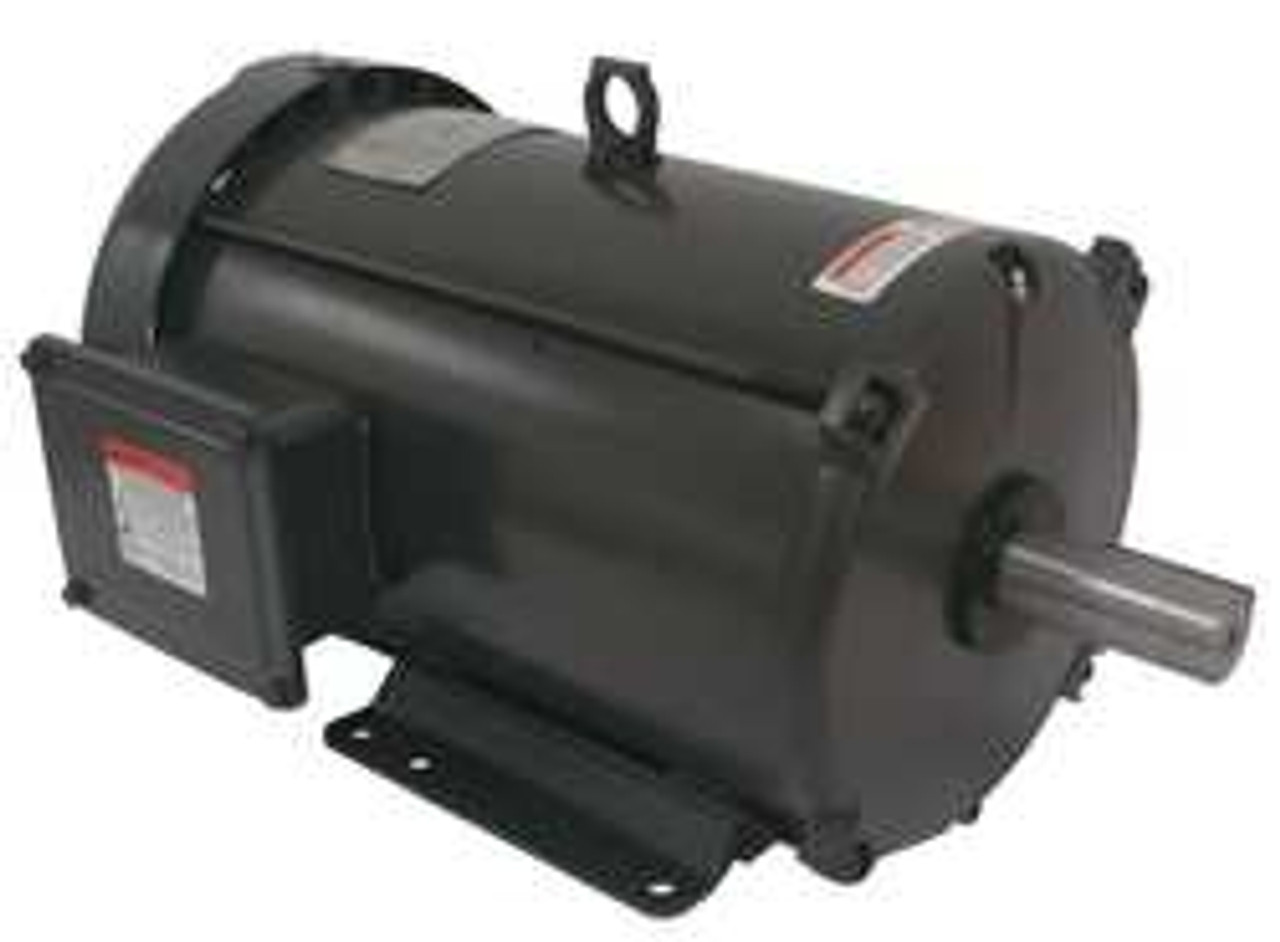

DAYTON 35Z916 - FARM MOTOR 1 HP 1760 RPM 208-230/460V - GENERAL PURPOSE FARM DUTY MOTOR 3-PHASE 1 HP NAMEPLATE RPM 1760 VOLTAGE 208-230/460 3 PHASE FRAME 143T TOTALLY ENCLOSED FAN-COOLED FULL LOAD AMPS 3.2-3.2/1.6 60/50 HZ RIGID BASE MOUNTING THERMAL PROTECTION NONE INSULATION CLASS F SERVICE FACTOR 1.25 BALL BEARINGS MAX AMBIENT TEMPERATURE 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 12-3/4 IN. SHAFT DIA 7/8 IN. SHAFT LENGTH 2-1/4 IN. FRAME MATERIAL ROLLED STEEL INCLUDES SLINGER GASKETED CONDUIT BOX - EQUAL TO 35Z916
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
35Z916
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
39.25
CONTRACTOR PART NUMBER:
2510737854
MAS CONTRACT NUMBER:
47QSEA20D0043
