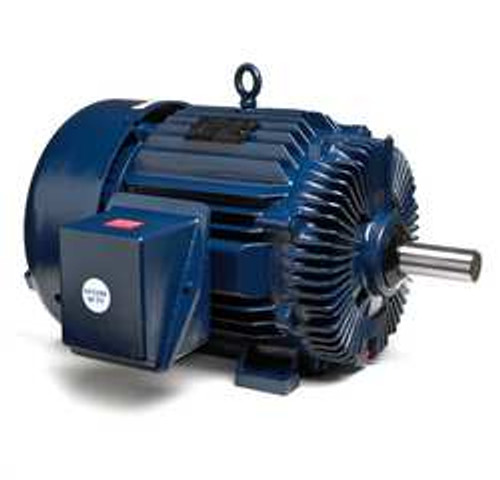

MARATHON 364TTFS9234 CT MOTOR 3-PH TEFC 50 AND 13 HP

MARATHON 364TTFS9234 - CT MOTOR 3-PH TEFC 50 AND 13 HP - COOLING TOWER MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 50 13 HP 1775/890 NAMEPLATE RPM 364T FRAME CW/CCW ROTATION 460 VOLTAGE 61/24 FULL LOAD AMPS 3 PHASE 60 HZ BASE MOUNTING MOUNTING POSITION HORIZONTAL BEARINGS BALL FRAME MATERIAL CAST IRON NONE THERMAL PROTECTION 1.15 SERVICE FACTOR AMBIENT TEMPERATURE 40 DEGREES C SHAFT DIA 2-3/8 IN. SHAFT LENGTH 6-1/8 IN. LENGTH LESS SHAFT 25-3/8 IN. OVERALL LENGTH 31-1/2 IN. INSULATION CLASS F RPM RANGE 1701-1800 DUTY CONTINUOUS - EQUAL TO 19YR35
