Product Description

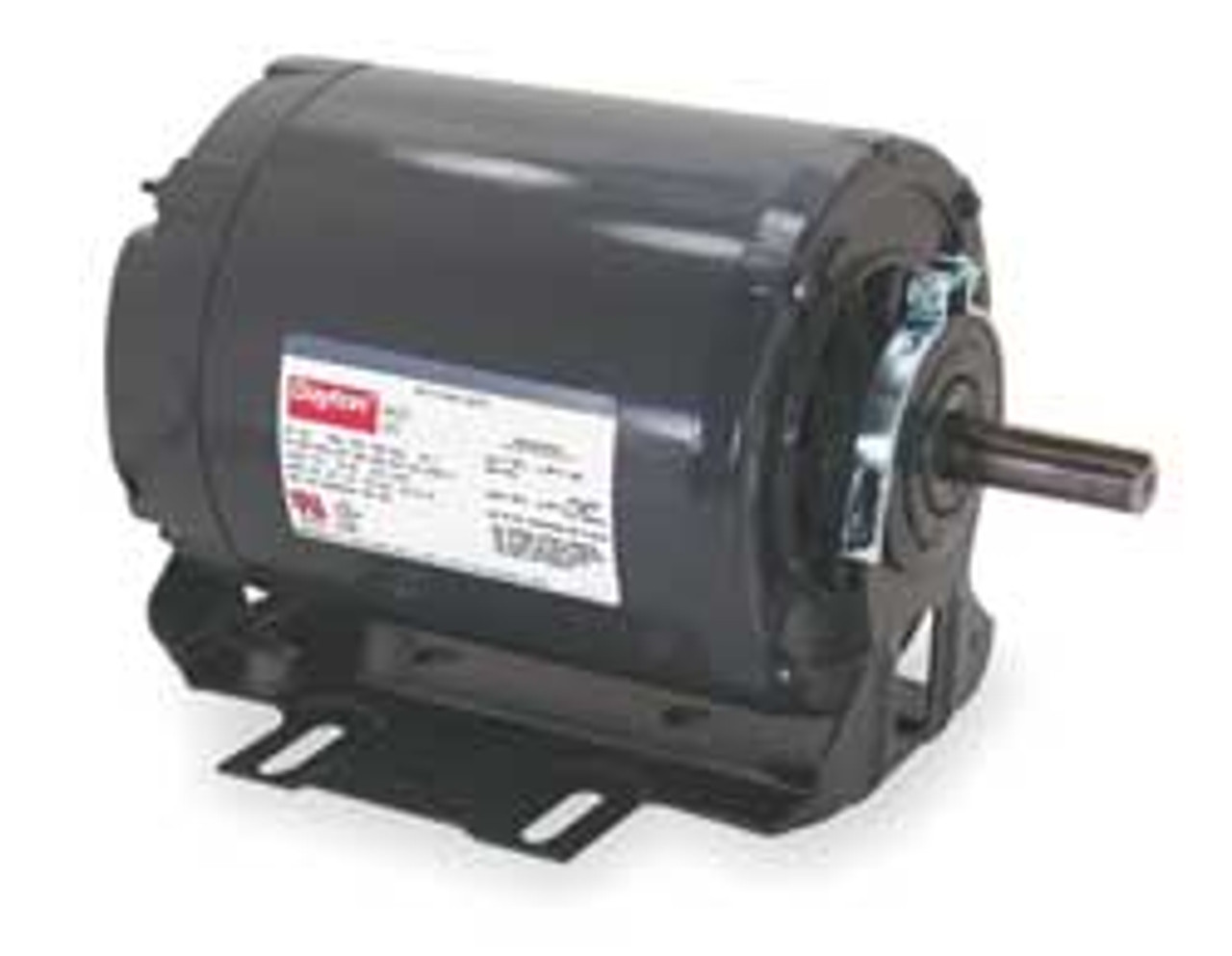

DAYTON 6XH81 - 50 HZ MOTOR 1/3 HP 1425 110/220 56Z ODP - 50 HZ MOTOR SPLIT-PHASE OPEN DRIPPROOF 1/3 HP NUMBER OF SPEEDS 1 NAMEPLATE RPM 1425 VOLTAGE 110/220 HZ 50 1 PHASE FULL LOAD AMPS 6.1/3.0 56Z FRAME MOUNTING CRADLE THERMAL PROTECTION AUTO INSULATION CLASS B 1.00 SERVICE FACTOR BEARINGS BALL ROTATION CW/CCW AMBIENT TEMPERATURE 40 DEGREES C SHAFT DIA 1/2 IN. SHAFT LENGTH 1-1/2 IN. LENGTH LESS SHAFT 7-7/8 IN. OVERALL LENGTH 9-3/8 IN. RPM RANGE 1401-1500 - EQUAL TO 6XH81
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
6XH81
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
17
CONTRACTOR PART NUMBER:
2510817173
MAS CONTRACT NUMBER:
47QSEA20D0043
