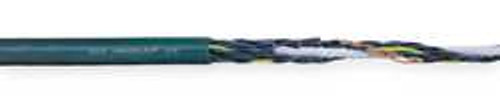

CHAINFLEX CF6-07-12 CONTINUOUS FLEXING CONTROL CABLE 7A 600V

CHAINFLEX CF6-07-12 - CONTINUOUS FLEXING CONTROL CABLE 7A 600V - CONTINUOUS FLEXING CONTROL CABLE WIRE SIZE 18 AWG NUMBER OF CONDUCTORS 12 SPOOL LENGTH CUT TO LENGTH ORDER BY THE FOOT MAX AMPS 7 MAX VOLTAGE 600V NOMINAL OUTSIDE DIA 0.55 IN. JACKET COLOR GREEN WIRE COLOR BLACK WITH WHITE NUMBERS + (1) GREEN/YELLOW MIN BEND RADIUS 7.5 X O.D. SHIELDED CONDUCTOR MATERIAL BARE COPPER JACKET MATERIAL PVC TEMP RANGE 23 DEGREES TO 158 DEGREES F FEATURES OIL RESISTANT AND FLAME RESISTANT STANDARDS CRUUS/ CE - EQUAL TO 2TZA4
