Product Description

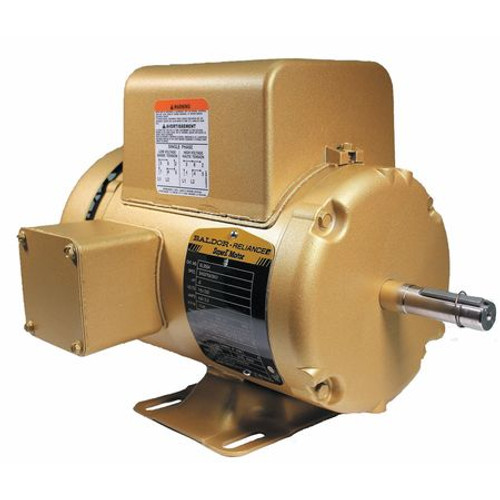

BALDOR ELECTRIC EL3510 - MOTOR 1760RPM 1PHASE 56H 115/230V TEFC - GENERAL PURPOSE MOTOR CAPACITOR-START TOTALLY ENCLOSED FAN-COOLED 1 HP NAMEPLATE RPM 1760 56H FRAME VOLTAGE 115/230 60 HZ 1 PHASE 8.5/4.25 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 13-13/16 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G8027415
MANUFACTURER:
BALDOR ELECTRIC
MANUFACTURER PART NUMBER:
EL3510
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
45
CONTRACTOR PART NUMBER:
2510924230
MAS CONTRACT NUMBER:
47QSEA20D0043
