Product Description

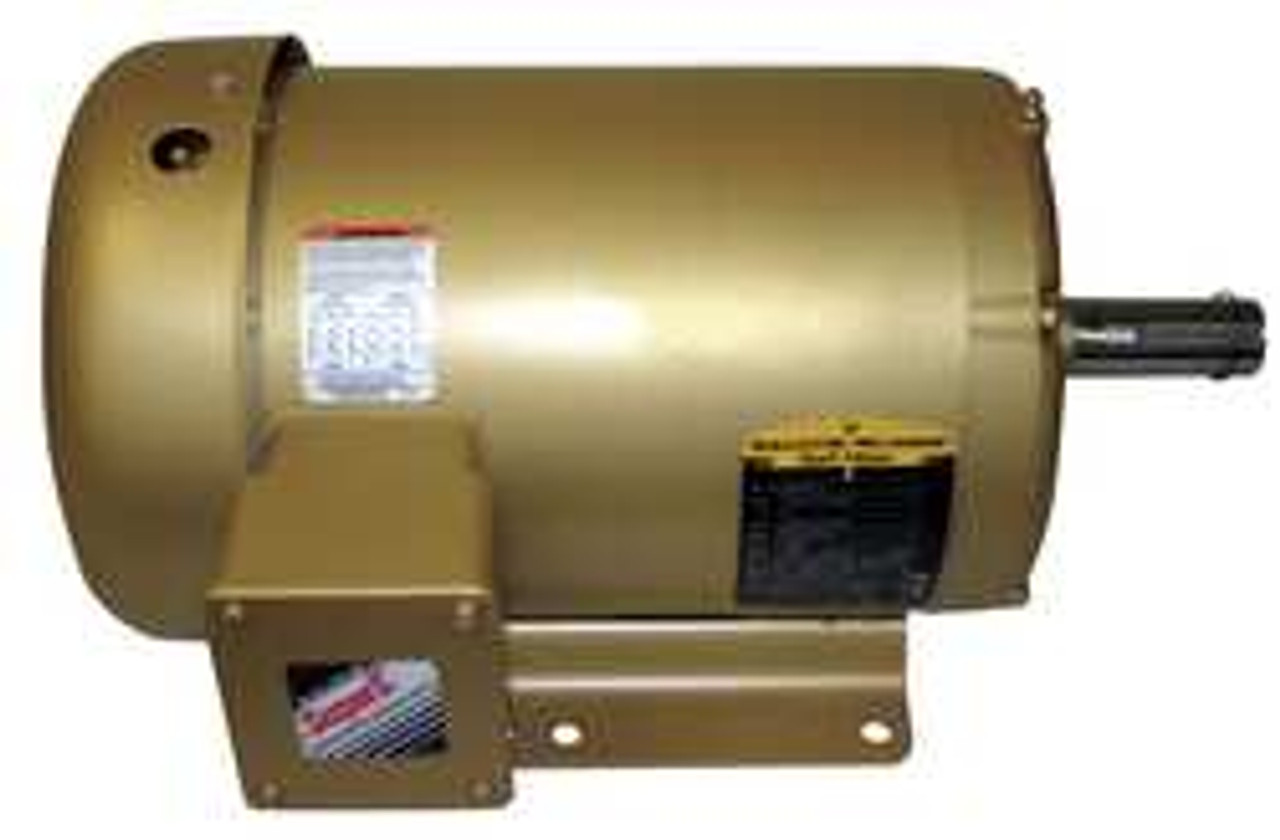

BALDOR ELECTRIC EM3550 - MOTOR 3-PH 1-1/2 HP 3500 RPM 56 TEFC - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 1-1/2 HP NAMEPLATE RPM 3500 56 FRAME VOLTAGE 208-230/460 60 HZ 3 PHASE 4-3.8/1.9 FULL LOAD AMPS MOUNTING BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 12-1/4 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G8171116
MANUFACTURER:
BALDOR ELECTRIC
MANUFACTURER PART NUMBER:
EM3550
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
41
CONTRACTOR PART NUMBER:
2510924520
MAS CONTRACT NUMBER:
47QSEA20D0043
