Product Description

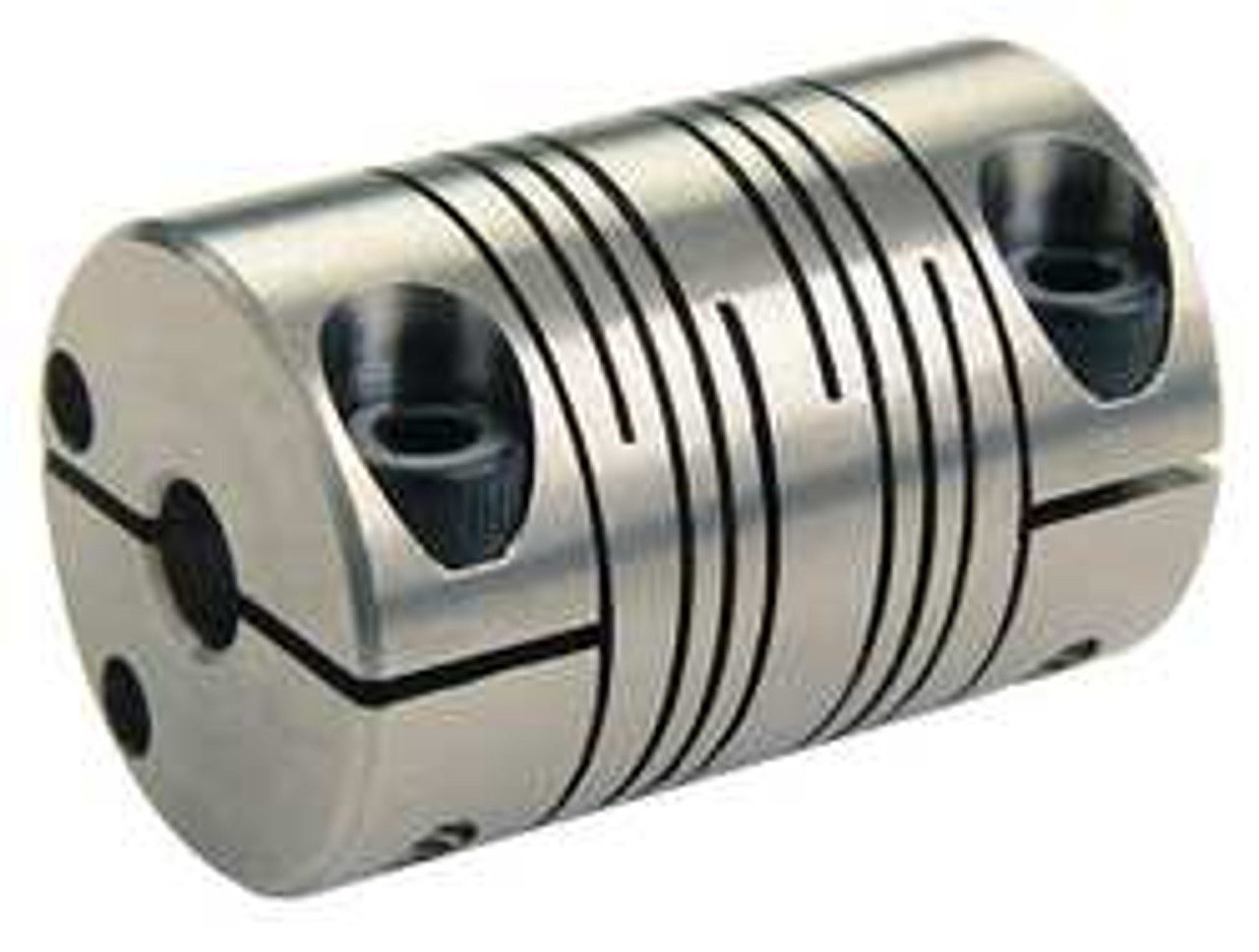

RULAND MANUFACTURING FCMR38-20-16-A - COUPLING 6 BEAM CLAMP 20MMX16MM - MOTION CONTROL COUPLING 6-BEAM CLAMP STYLE BORE DIA 20MM X 16MM MIN BORE (MM) 16 MAX BORE (MM) 20 OUTSIDE DIA (IN.) 1.5 OUTSIDE DIA (MM) 38.1 CLEARANCE DIA (IN.) 1.642 CLEARANCE DIA (MM) 41.71 OVERALL LENGTH (IN.) 2.25 OVERALL LENGTH (MM) 57.2 LENGTH THROUGH BORE (IN.) 1.042 LENGTH THROUGH BORE (MM) 26.47 CAP SCREW SCREW SIZE (MM) M5 TORQUE (IN.-LBS.) 104 TORSIONAL STIFFNESS (DEG./IN.-LBS.) 0.087 6000 MAX RPM 3 DEGREES 0.03 +/-0.015 MAX TEMP RANGE (F) 225 DEGREES - EQUAL TO G8214516
MANUFACTURER:
RULAND MANUFACTURING
MANUFACTURER PART NUMBER:
FCMR38-20-16-A
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
1.5
CONTRACTOR PART NUMBER:
2510933760
MAS CONTRACT NUMBER:
47QSEA20D0043
