Product Description

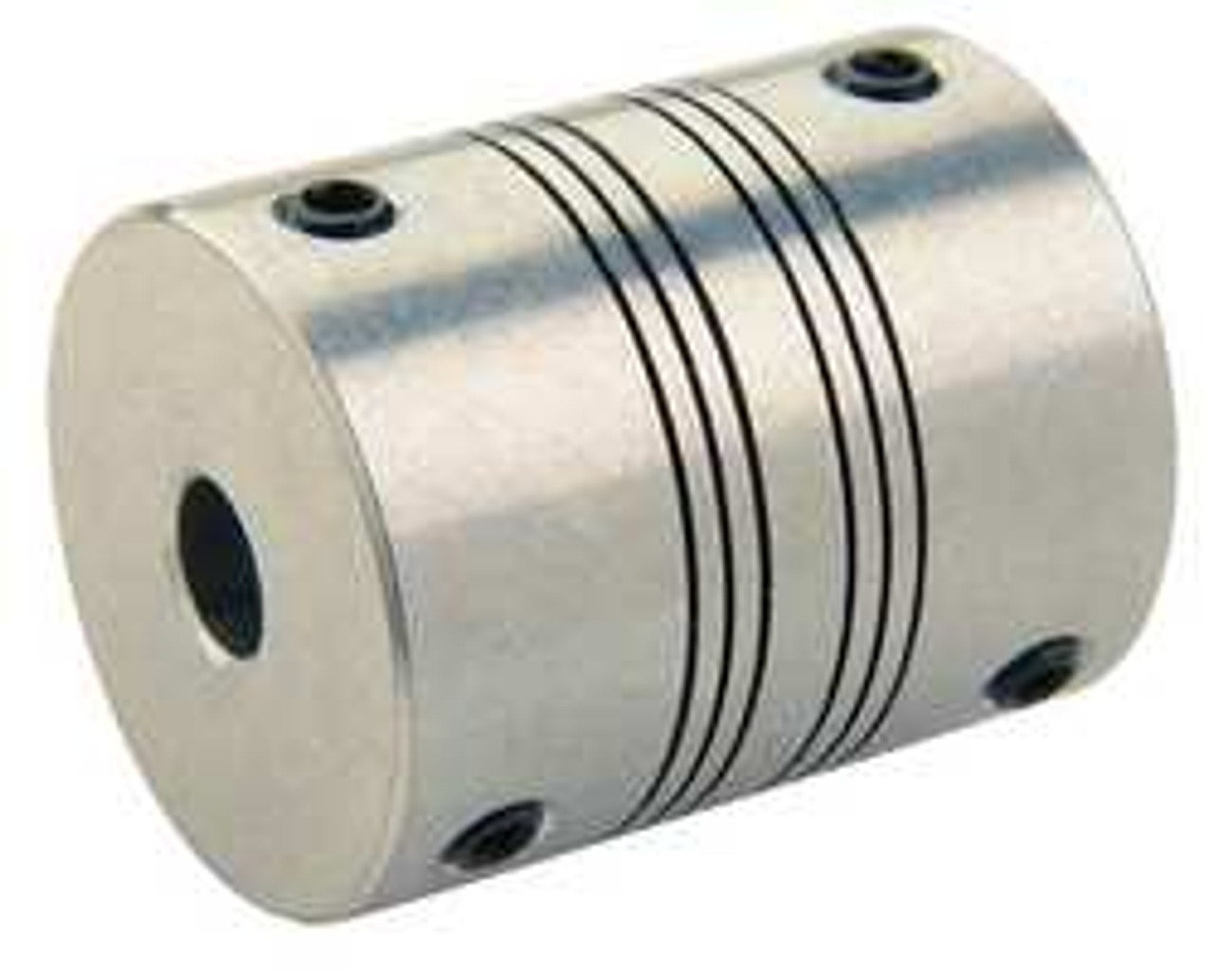

RULAND MANUFACTURING MWC30-12-10-A - COUPLING 4 BEAM CLAMP 12MMX10MM - MOTION CONTROL COUPLING 4-BEAM CLAMP STYLE BORE DIA 12MM X 10MM MIN BORE (MM) 10 MAX BORE (MM) 12 OUTSIDE DIA (IN.) 1.181 OUTSIDE DIA (MM) 30 CLEARANCE DIA (IN.) 0.984 CLEARANCE DIA (MM) 25 OVERALL LENGTH (IN.) 1.496 OVERALL LENGTH (MM) 38 LENGTH THROUGH BORE (IN.) 0.695 LENGTH THROUGH BORE (MM) 17.65 CAP SCREW SCREW SIZE (MM) M4 TORQUE (IN.-LBS.) 58 TORSIONAL STIFFNESS (DEG./IN.-LBS.) 0.105 6000 MAX RPM 3 DEGREES 0.01 +/-0.015 MAX TEMP RANGE (F) 225 DEGREES - EQUAL TO G8417561
MANUFACTURER:
RULAND MANUFACTURING
MANUFACTURER PART NUMBER:
MWC30-12-10-A
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.1
CONTRACTOR PART NUMBER:
2510985759
MAS CONTRACT NUMBER:
47QSEA20D0043
