Product Description

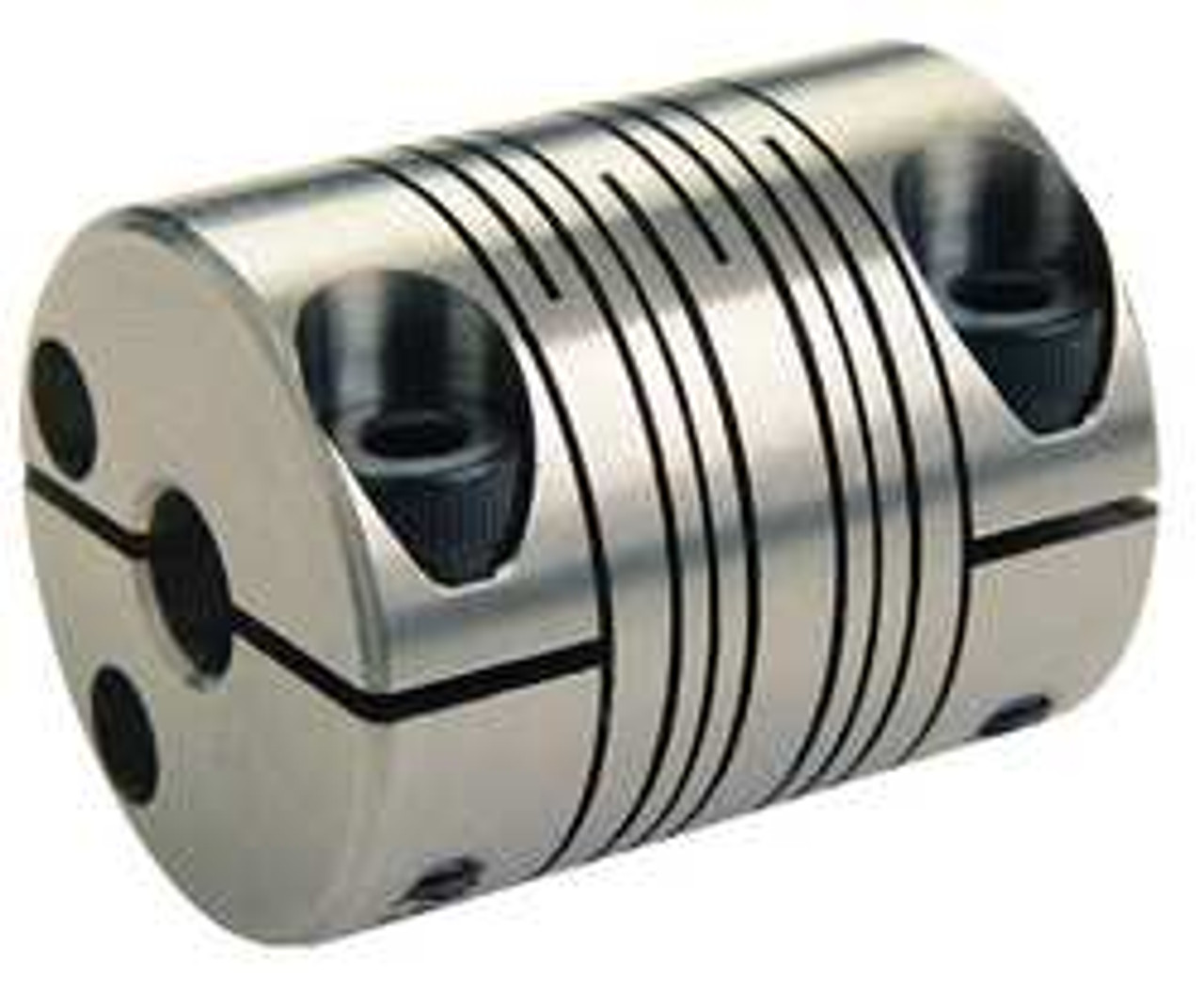

RULAND MANUFACTURING MWS25-10-10-A - COUPLING 4 BEAM SET SCREW 10MMX10MM - MOTION CONTROL COUPLING 4-BEAM SET SCREW STYLE BORE DIA 10MM X 10MM MIN BORE (MM) 10 MAX BORE (MM) 10 OUTSIDE DIA (IN.) 0.984 OUTSIDE DIA (MM) 25 CLEARANCE DIA (IN.) 1.181 CLEARANCE DIA (MM) 30 OVERALL LENGTH (IN.) 0.945 OVERALL LENGTH (MM) 24 LENGTH THROUGH BORE (IN.) 0.444 LENGTH THROUGH BORE (MM) 11.29 SET SCREW SCREW SIZE (MM) M4 2 (120 DEG.) TORQUE (IN.-LBS.) 27 TORSIONAL STIFFNESS (DEG./IN.-LBS.) 0.198 6000 MAX RPM 3 DEGREES 0.01 +/-0.015 - EQUAL TO G7881492
MANUFACTURER:
RULAND MANUFACTURING
MANUFACTURER PART NUMBER:
MWS25-10-10-A
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.47
CONTRACTOR PART NUMBER:
2510986005
MAS CONTRACT NUMBER:
47QSEA20D0043
