Product Description

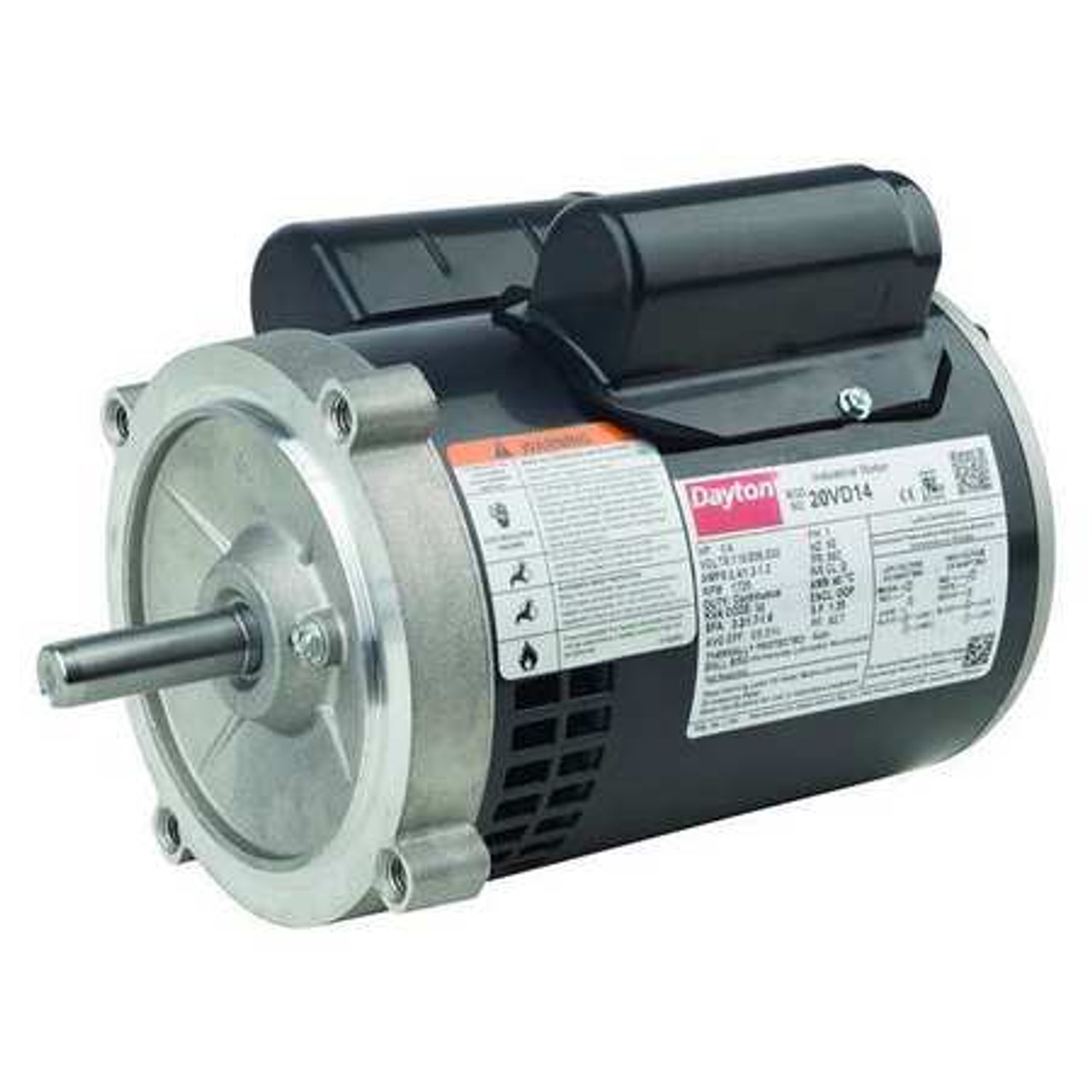

DAYTON 20VD14 - GP MTR CS/CR ODP 1/4HP 1725 56C EFF 68.5 - GENERAL PURPOSE MOTOR CAPACITOR-START/CAPACITOR-RUN OPEN DRIPPROOF 1/4 HP NAMEPLATE RPM 1725 56C FRAME VOLTAGE 115/208-230 60 HZ 1 PHASE 2.4/1.2-1.2 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING FACE MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT DOWN MOTOR THERMAL PROTECTION AUTO INSULATION CLASS B 1.35 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 10-11/16 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO 20VD14
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
20VD14
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
17
CONTRACTOR PART NUMBER:
2511178853
MAS CONTRACT NUMBER:
47QSEA20D0043
