Product Description

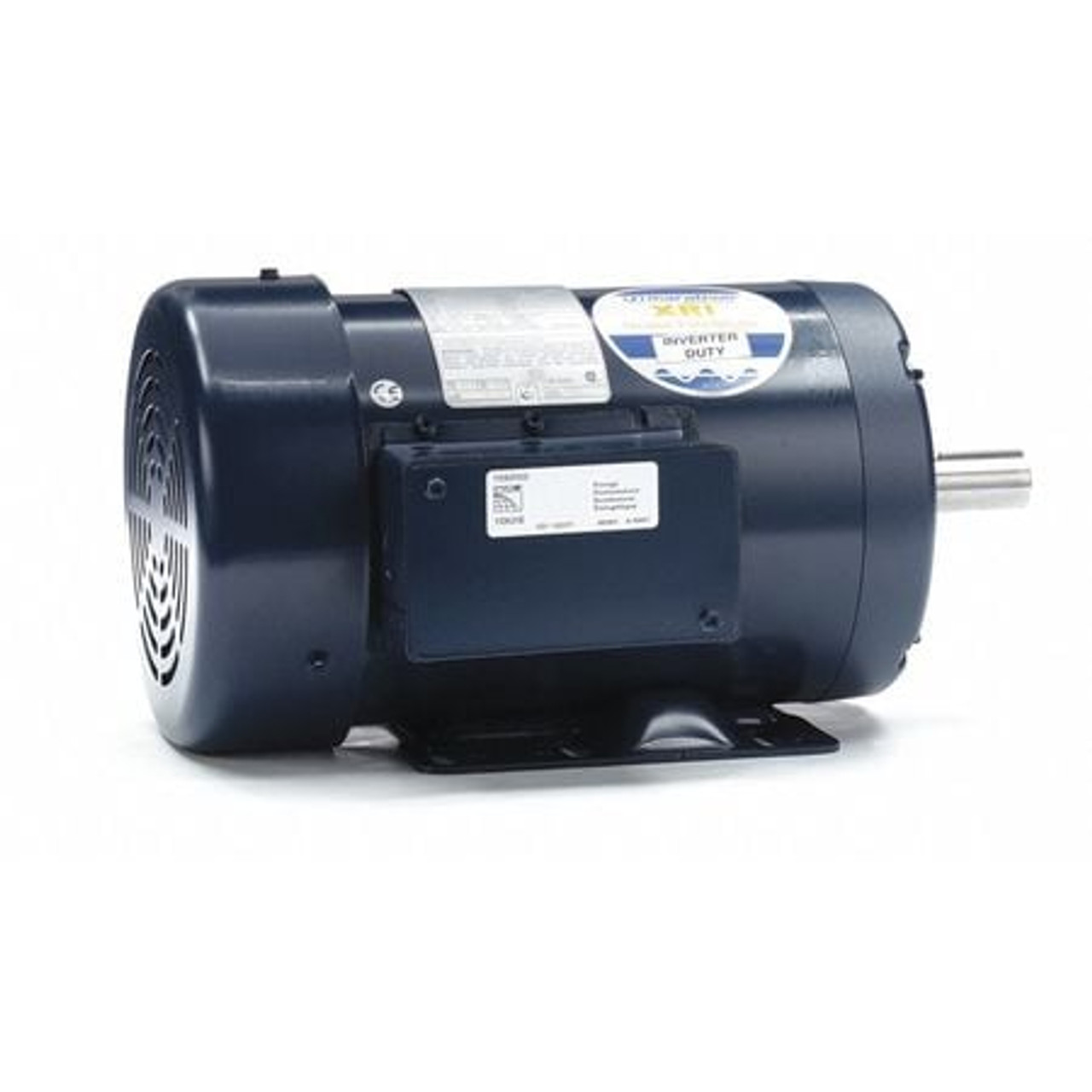

MARATHON 145TTFR13002 - MOTOR 3-PH 2 HP 3490 RPM 208-230/460V - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 2 HP NAMEPLATE RPM 3490 145T FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 5.2-4.8/2.4 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 13-3/4 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G5661284
MANUFACTURER:
MARATHON
MANUFACTURER PART NUMBER:
145TTFR13002
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
45.8
CONTRACTOR PART NUMBER:
2511214220
MAS CONTRACT NUMBER:
47QSEA20D0043
