Product Description

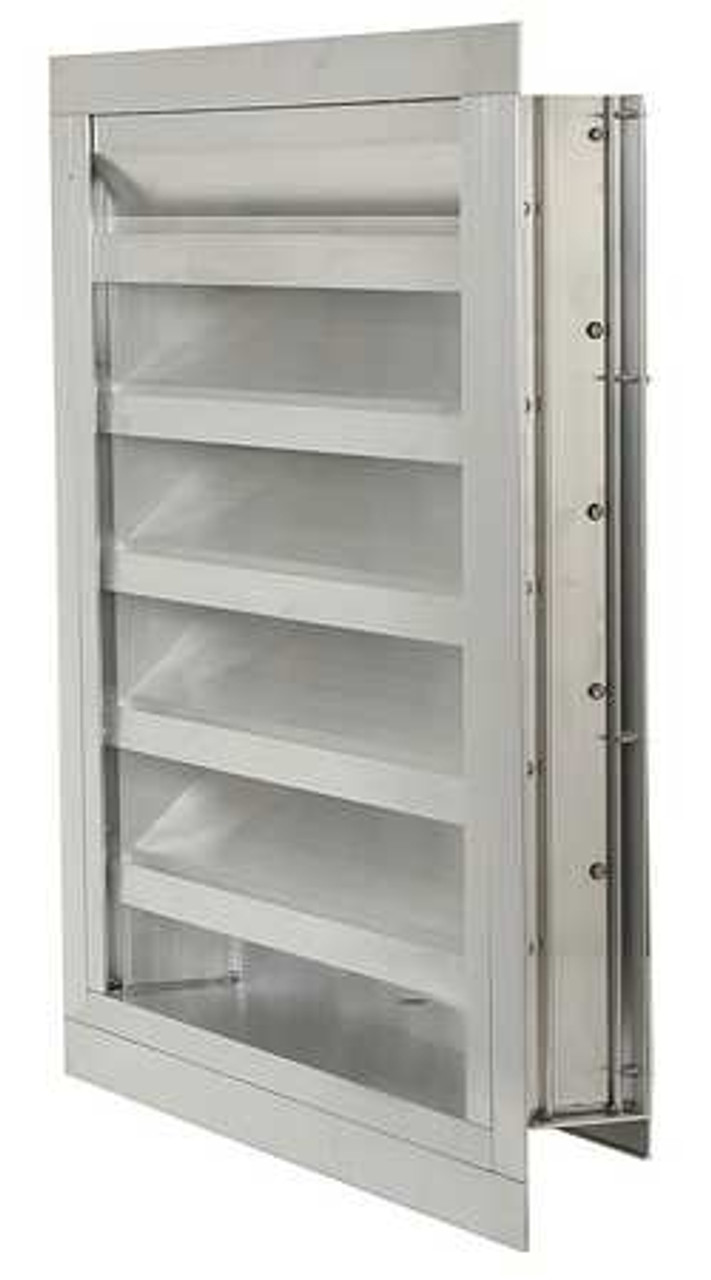

DAYTON 20UA23 - LOUVER DAMPER ADJUSTABLE 36H X 24W - COMBINATION LOUVER DAMPER ADJUSTABLE BLADES MAX EXHAUST (CFM) 3862 MAX INTAKE (CFM) 2700 INSIDE HEIGHT (IN.) 30 OUTSIDE HEIGHT (IN.) 38-1/2 INSIDE WIDTH (IN.) 21 OUTSIDE WIDTH (IN.) 26-1/2 MIN WALL OPENING (IN.) 36H X 24W FLANGE WIDTH (IN.) 1-1/2 NUMBER OF BLADES 7 FREE AREA (SQUARE-FT.) 2.330 MAX VELOCITY (FPM) 3000 BLADE ANGLE (DEG.) 45/90 CONSTRUCTION MATERIAL EXTRUDED ALUMINUM FOR USE WITH INTAKE OR EXHAUST APPLICATIONS INCLUDES BIRD SCREEN - EQUAL TO G8485687
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
20UA23
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
35.35
CONTRACTOR PART NUMBER:
2511257539
MAS CONTRACT NUMBER:
47QSEA20D0043
