Product Description

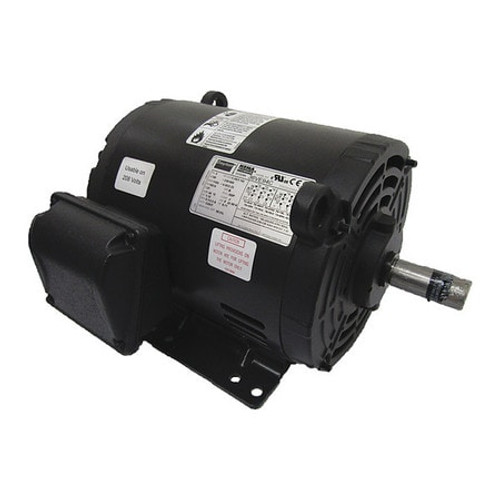

DAYTON 36VE93 - GP MOTOR ODP 1 HP 1170 RPM 7/8IN. DIA. - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 1 HP NAMEPLATE RPM 1170 182/4 FRAME VOLTAGE 208-230/460 60 HZ 3 PHASE 2.7-2.5/1.2 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 13-1/2 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G1811078
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
36VE93
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
56.8
CONTRACTOR PART NUMBER:
2511607518
MAS CONTRACT NUMBER:
47QSEA20D0043
