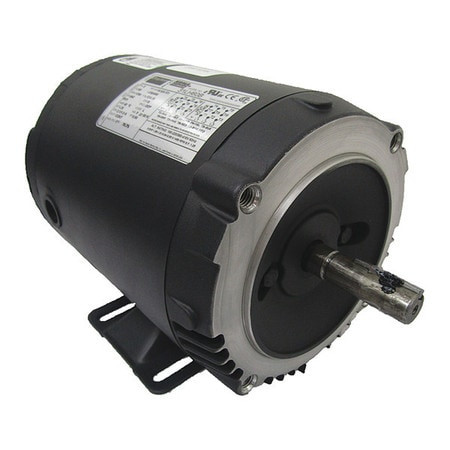

DAYTON 31LH60 3PH 1/2HP 1765 208-230/460 78.2

DAYTON 31LH60 - 3PH 1/2HP 1765 208-230/460 78.2 - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 1/2 HP NAMEPLATE RPM 1765 56C FRAME VOLTAGE 208-230/460 60 HZ 3 PHASE 1.9-1.7/0.86 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOTOR MOUNTING TYPE FACE/BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.15 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 10-11/16 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G9096342
