Product Description

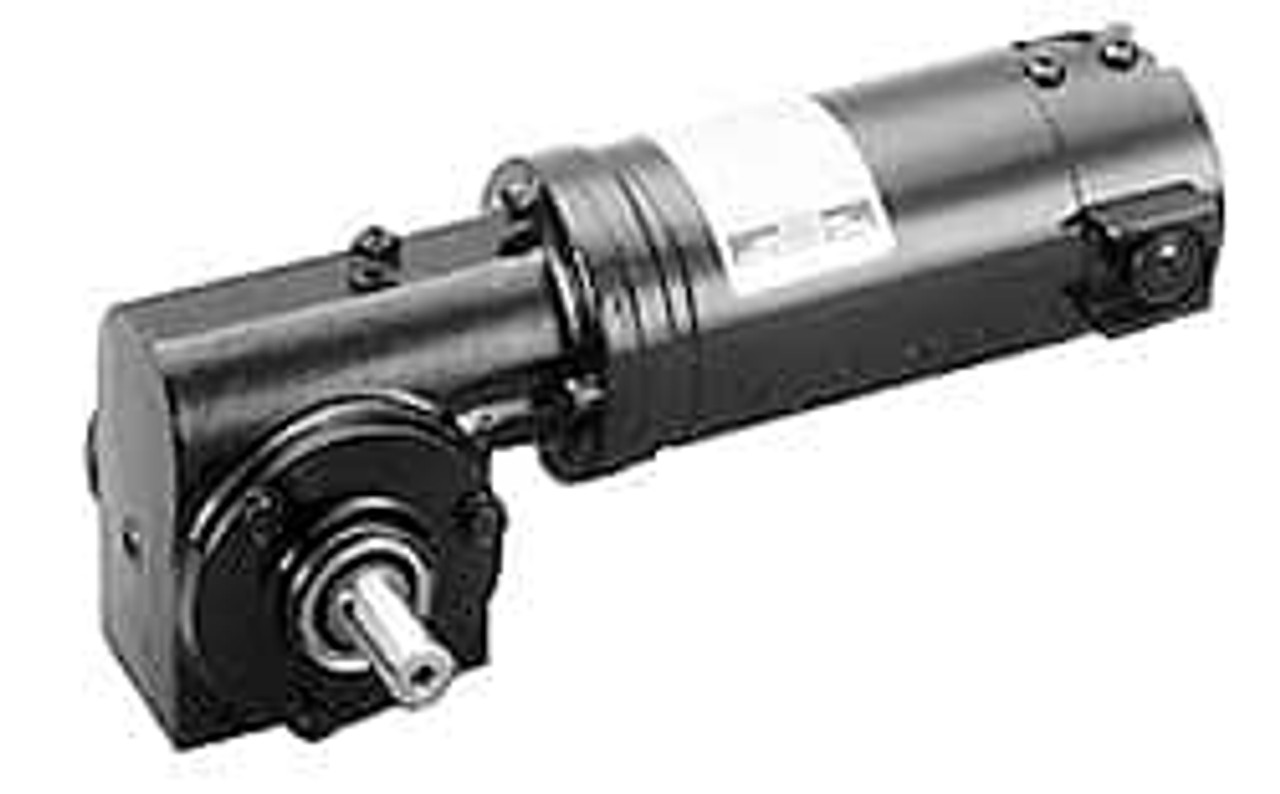

LEESON M1135043.00 - LEESON M1135043.00, 1/4 HP, 83 RPM, 90VDC, TENV, 13, 30:1 RATIO, 125 IN-LBS - LEESON MOTORS MOTOR GEARMOTOR-RIGHT-ANGLE SHAFT - 83RPM - TENV - 90V - DC - 1/4HP DC GEARMOTOR WITH RIGHT-ANGLE SHAFT. 1/4HP, 83 RPM, GEAR RATIO 30 TO 1, OVERHUNG LOAD 235 POUNDS, 125 LB. IN. FULL LOAD TORQUE, TOTALLY-ENCLOSED NON-VENTILATED (TENV) ENCLOSURE, 34 FRAME, 90V, NAME PLATE AMPS 2.3.
WORM-TYPE RIGHT-ANGLE GEARING FEATURES HARDENED,STEEL WORM WITH BRONZE WORM WHEEL FOR LONG LIFE AND QUIET OPERATION. PRECISION MACHINED ALUMINUM HOUSINGS ARE USE AND GEARBOX HAS ALL BALL BEARINGS. THE HOUSING IS SEALED AND LUBRICATION IS PERMANENT WITH AN OIL BATH. THE OUTPUT SHAFT IS FIELD INTERCHA - EQUAL TO B234588
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
M1135043.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
15
CONTRACTOR PART NUMBER:
2511925488
MAS CONTRACT NUMBER:
47QSEA20D0043
