Product Description

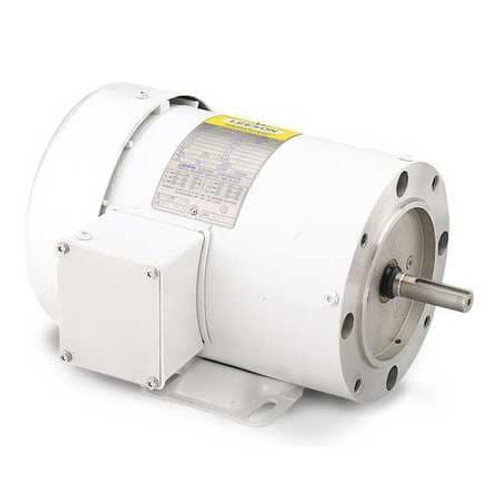

LEESON 121871.00 - WASHDOWN MOTOR 1-1/2 HP FACE/BASE 145TC - WASHDOWN MOTOR 3-PHASE 1-1/2 HP 1750 NAMEPLATE RPM VOLTAGE 230/460 PHASE 3 145TC FRAME TOTALLY ENCLOSED FAN-COOLED FULL LOAD AMPS 4.8/2.4 60/50 HZ MOTOR THERMAL PROTECTION NONE F INS. CLASS MOTOR SERVICE FACTOR 1.15 BALL MOTOR BEARINGS MAX AMBIENT TEMP 40 DEGREES C CWSE MOTOR SHAFT ROTATION SHAFT DIA 7/8 IN. SHAFT LENGTH 2 IN. LENGTH LESS SHAFT 11-11/16 IN. MOTOR FRAME MATERIAL ROLLED STEEL NOMINAL EFFICIENCY 86.5 PERCENT RPM RANGE 1701-1800 - EQUAL TO G4609081
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
121871.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
44.7
CONTRACTOR PART NUMBER:
2512220680
MAS CONTRACT NUMBER:
47QSEA20D0043
