Product Description

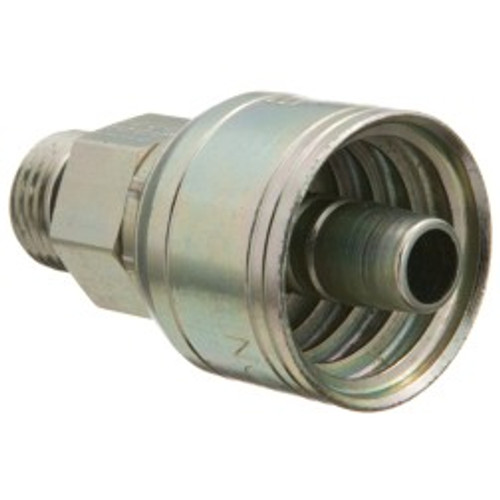

WEATHERHEAD 20Z520 - Z HOSE END FITTING - WHERE IS PRODUCT USED: GENERAL PURPOSE LOW, MEDIUM & HIGH PRESSURE HYDRAULIC, USE W/ HOSE PART #: H104, H145, H145R, H190, H190H, H245, H280, H290, H290H, H290L, H345, H350, H400, H425, H579, DIMENSION T: 15/8 - 12, DIMENSION 2: 1.750" (44.5 MM), VMRS CODE: 045004026, BRAND: EATON, HOSE END HOLE DIAMETER: 1 1/4", DIMENSION E: 1.050" (26.7 MM), DIMENSION D: 2.160" (54.9 MM), HOSE END THREAD SIZE: 15/8 - 12, DIMENSION A: 3.890" (98.8 MM), UNSPSC: 40183100, HOSE END MATERIAL: LOW CARBON STEEL, HOSE END SERIES: Z, HOSE END HOSE CUT-OFF FACTOR: 2.160" (54.9 MM) - EQUAL TO WH 20Z520
MANUFACTURER:
WEATHERHEAD
MANUFACTURER PART NUMBER:
20Z520
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.35
CONTRACTOR PART NUMBER:
2230173414
MAS CONTRACT NUMBER:
47QSEA20D0043
