Product Description

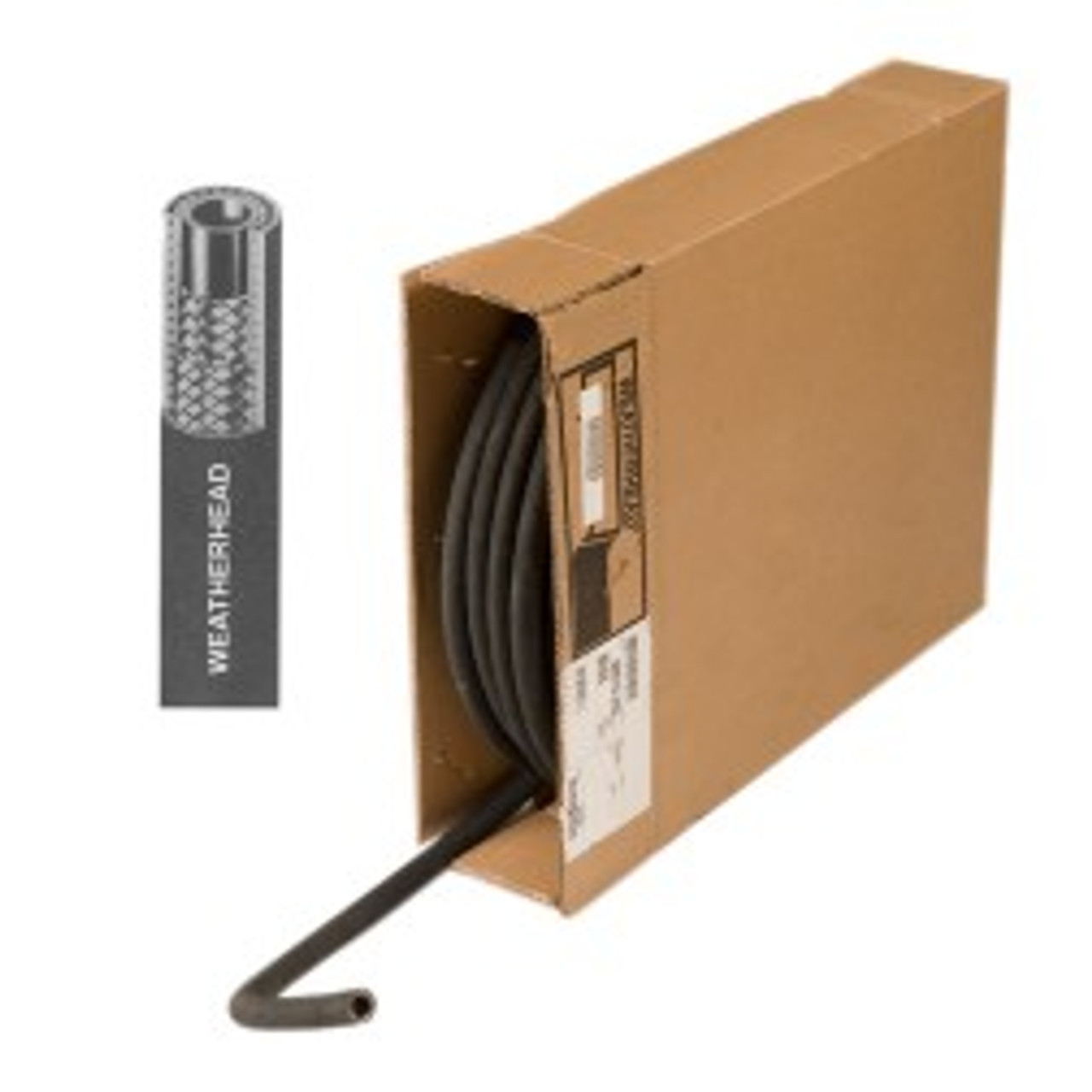

WEATHERHEAD H28016 - WEATHERSHIELD EN HOSE - BURST PRESSURE:9600 PSI (661.9 BAR), WHERE IS PRODUCT USED:HIGH PRESSURE HOSE FOR HYDRAULIC FLUID. WATER TRANSFER., WEIGHT PER 100':80 LBS, HOSE MINIMUM BURST PRESSURE:12,000 PSI, HOSE OPERATING TEMPERATURE RANGE:-40 DEG. TO +260 DEG. F. (PETROLEUM BASED FLUIDS), -40 DEG. TO +158 DEG. F. (WATER BASED FLUIDS), HOSE SAE RATING:SAE 100R16, EN 857 TYPE 2SC, DOT APPROVED:NO, VMRS CODE:053008019, HOSE MINIMUM BEND RADIUS:6 IN., HOSE REINFORCEMENT TYPE:2 LAYERS OF HIGH - TENSILE STEEL BRAID, MEETS THE FOLLOWING INDUSTRY STANDARDS:100R16, EN 857, TYPE 2SC, USCG APPROVED:YES, WORKING PRESSURE:3000 LB/I - EQUAL TO WH H28016
MANUFACTURER:
WEATHERHEAD
MANUFACTURER PART NUMBER:
H28016
UNIT OF MEASURE:
FT
QTY PER UNIT OF MEASURE:
50
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
50
WEIGHT:
4.994
CONTRACTOR PART NUMBER:
2230516160
MAS CONTRACT NUMBER:
47QSEA20D0043
