Product Description

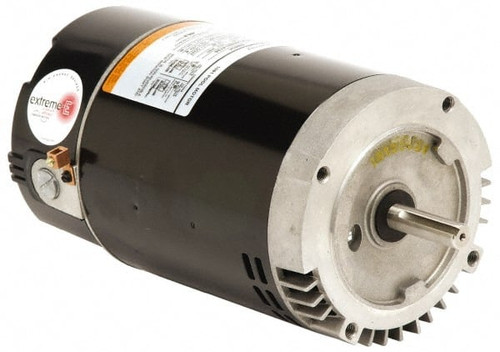

CENTURY B976 - MOTOR,1 1/2,1/5 HP,3,450/1,725 RPM,230V - POOL PUMP MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1 1/2, 1/5 HP, NAMEPLATE RPM 3,450/1,725, NO. OF SPEEDS 2, VOLTAGE 230V AC, FULL LOAD AMPS 8.9/3.1, 56C FRAME, USABLE @ 208V NO, USABLE @ 200V NO, MAX. SF AMPS 8.9, 60 HZ, MOTOR SERVICE FACTOR 1.3, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, MAX. AMBIENT TEMP. 40 DEGREES C, DUTY CYCLE CONTINUOUS, MOTOR SHAFT ROTATION CCWSE, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR MOUNTING TYPE FACE, MOTOR MOUNTING POSITION HORIZONTAL - EQUAL TO G3044483
MANUFACTURER:
CENTURY
MANUFACTURER PART NUMBER:
B976
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
31.2
CONTRACTOR PART NUMBER:
2510034351
