Product Description

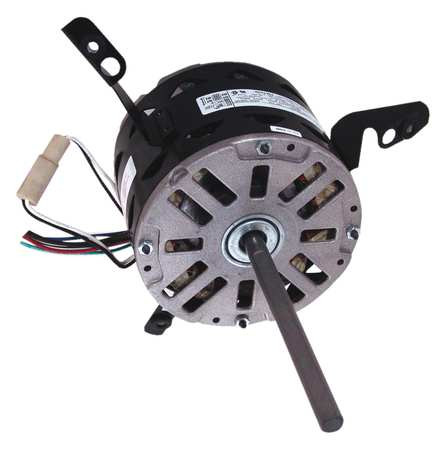

CENTURY FM1036 - MOTOR,1/3 HP,1075 RPM,48Y,208-230V - ROOM AIR CONDITIONER MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/3 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 3, VOLTAGE 208-230V AC, FULL LOAD AMPS 2.0, 48Y FRAME, USABLE @ 208V YES, USABLE @ 200V NO, MOTOR THERMAL PROTECTION AUTO, 60 HZ HZ, MOTOR SERVICE FACTOR 1, INS. CLASS B, MOTOR SHAFT ROTATION CW/CCW, MAX. AMBIENT TEMP. 50 DEGREES C, LEAD LENGTH 26 IN, MOTOR ENCLOSURE DESIGN OPEN AIR-OVER, MOTOR MOUNTING TYPE T-FLEX, MOTOR MOUNTING POSITION HORIZONTAL, NUMBER OF SHAFTS 1 - EQUAL TO G0934543
MANUFACTURER:
CENTURY
MANUFACTURER PART NUMBER:
FM1036
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
INDIA
ORDER INCREMENT:
1
WEIGHT:
13.9
CONTRACTOR PART NUMBER:
2510034579
