Product Description

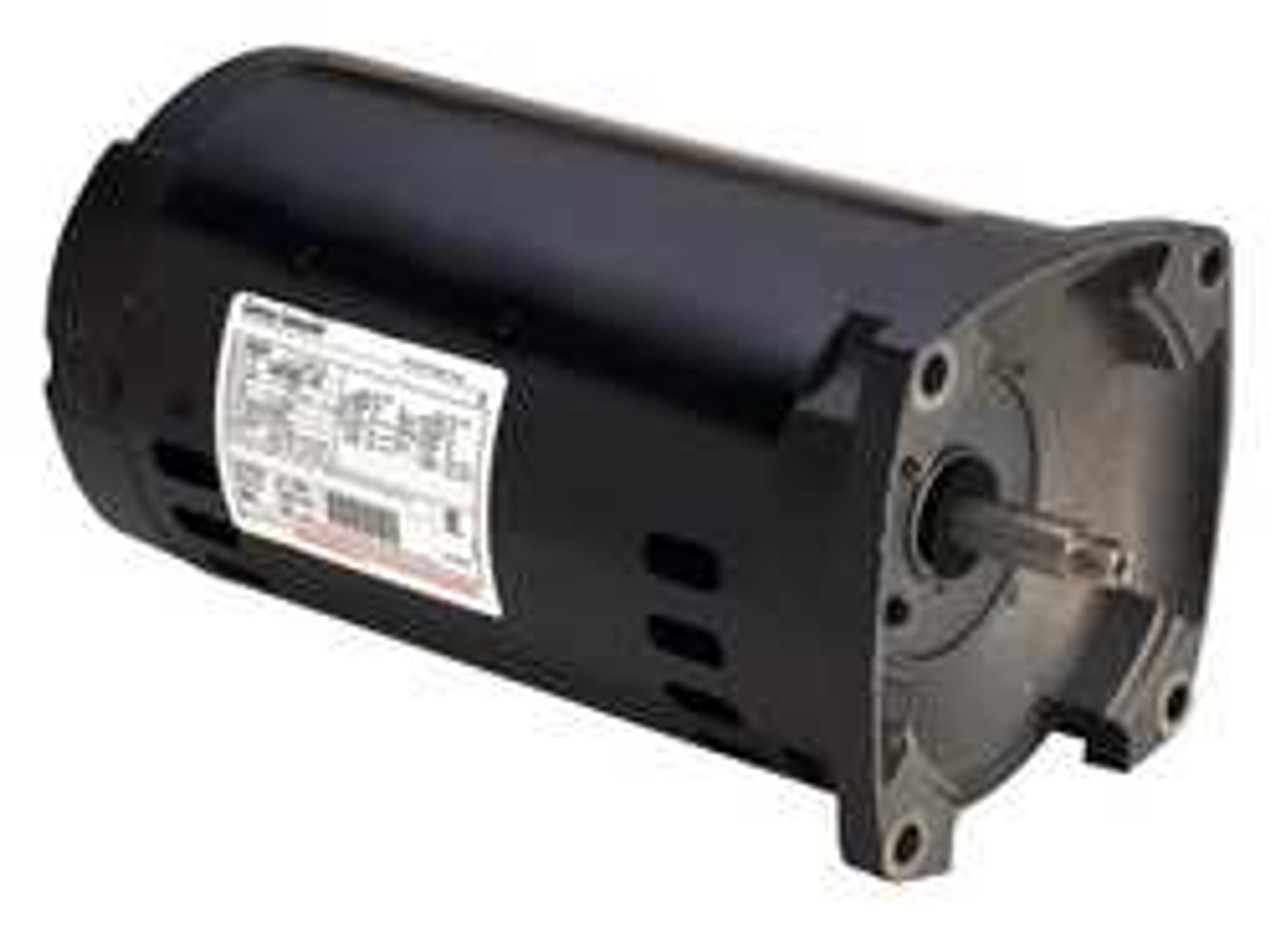

CENTURY H755 - PUMP MOTOR 3 HP 3450 208-230/460 V 56Y - SQUARE FLANGE POOL PUMP MOTOR 3-PHASE MOTOR TYPE OPEN DRIPPROOF ENCLOSURE 3 HP NAMEPLATE RPM 3450 56Y FRAME VOLTAGE 208-230/460 60 HZ 3 PHASE FULL LOAD AMPS 9.8-9.6/4.8 FLANGE MOUNTING THERMAL PROTECTION NONE INSULATION CLASS B SERVICE FACTOR 1.15 MAX AMBIENT TEMP 50 DEGREES C ROTATION CW/CCW SHAFT THREADED 1/2-20 UNF-2A RH AND 1/4-20 UNC-2B LH SHAFT MATERIAL 303 STAINLESS STEEL SHAFT DIA 5/8 IN. STANDARD EFFICIENCY GROUP TWO COMPARTMENT - EQUAL TO G0597843
MANUFACTURER:
CENTURY
MANUFACTURER PART NUMBER:
H755
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
35.65
CONTRACTOR PART NUMBER:
2510034643
MAS CONTRACT NUMBER:
47QSEA20D0043
