Product Description

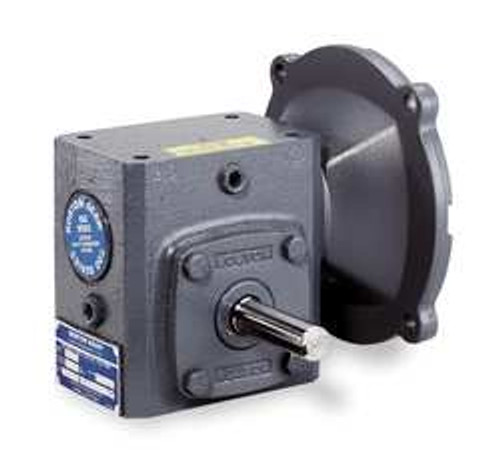

BOSTON GEAR F715-5-B5-G - SPEED REDUCER C-FACE 56C 5 1 - SPEED REDUCER C-FACE RIGHT ANGLE SHAFT ORIENTATION STANDARD DUTY 1750 INPUT RPM 350 NOMINAL OUTPUT RPM WORM CENTER DISTANCE 1.54 IN. BORE DIA 5/8 IN. 56C FRAME OVERHUNG LOAD 300 LB. 5 1 NOMINAL RATIO MAX INPUT HP 1 MAX TORQUE 164 IN.-LB. NUMBER OF STAGES 1 FORWARD/REVERSIBLE ROTATION OPTIONAL BASE ANY POSITION MOUNTING TAPERED ROLLER BEARINGS HARDENED STEEL PINION MATERIAL WORM GEAR TYPE CAST IRON HOUSING MATERIAL SINGLE OUTPUT OUTPUT SHAFT DIA 3/4 IN. - EQUAL TO 1L274
MANUFACTURER:
BOSTON GEAR
MANUFACTURER PART NUMBER:
F715-5-B5-G
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
18
CONTRACTOR PART NUMBER:
2510125895
MAS CONTRACT NUMBER:
47QSEA20D0043
