Product Description

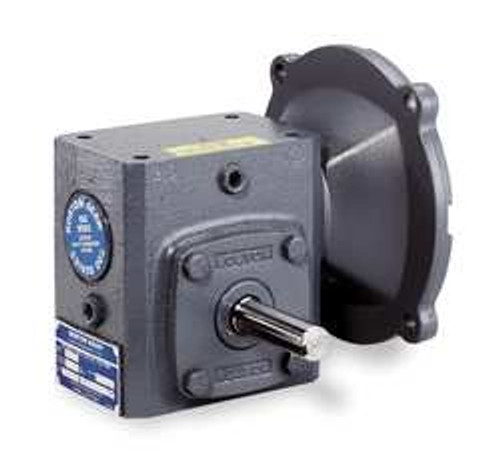

BOSTON GEAR F718-60-B5-G - SPEED REDUCER C-FACE 56C 60 1 - SPEED REDUCER C-FACE RIGHT ANGLE SHAFT ORIENTATION STANDARD DUTY 1750 INPUT RPM 29 NOMINAL OUTPUT RPM WORM CENTER DISTANCE 1.75 IN. BORE DIA 5/8 IN. 56C FRAME OVERHUNG LOAD 600 LB. 60 1 NOMINAL RATIO MAX INPUT HP 0.3 MAX TORQUE 440 IN.-LB. NUMBER OF STAGES 1 FORWARD/REVERSIBLE ROTATION OPTIONAL BASE ANY POSITION MOUNTING TAPERED ROLLER BEARINGS HARDENED STEEL PINION MATERIAL WORM GEAR TYPE CAST IRON HOUSING MATERIAL SINGLE OUTPUT OUTPUT SHAFT DIA 7/8 IN. - EQUAL TO G1424534
MANUFACTURER:
BOSTON GEAR
MANUFACTURER PART NUMBER:
F718-60-B5-G
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
22.3
CONTRACTOR PART NUMBER:
2510125905
MAS CONTRACT NUMBER:
47QSEA20D0043
