Product Description

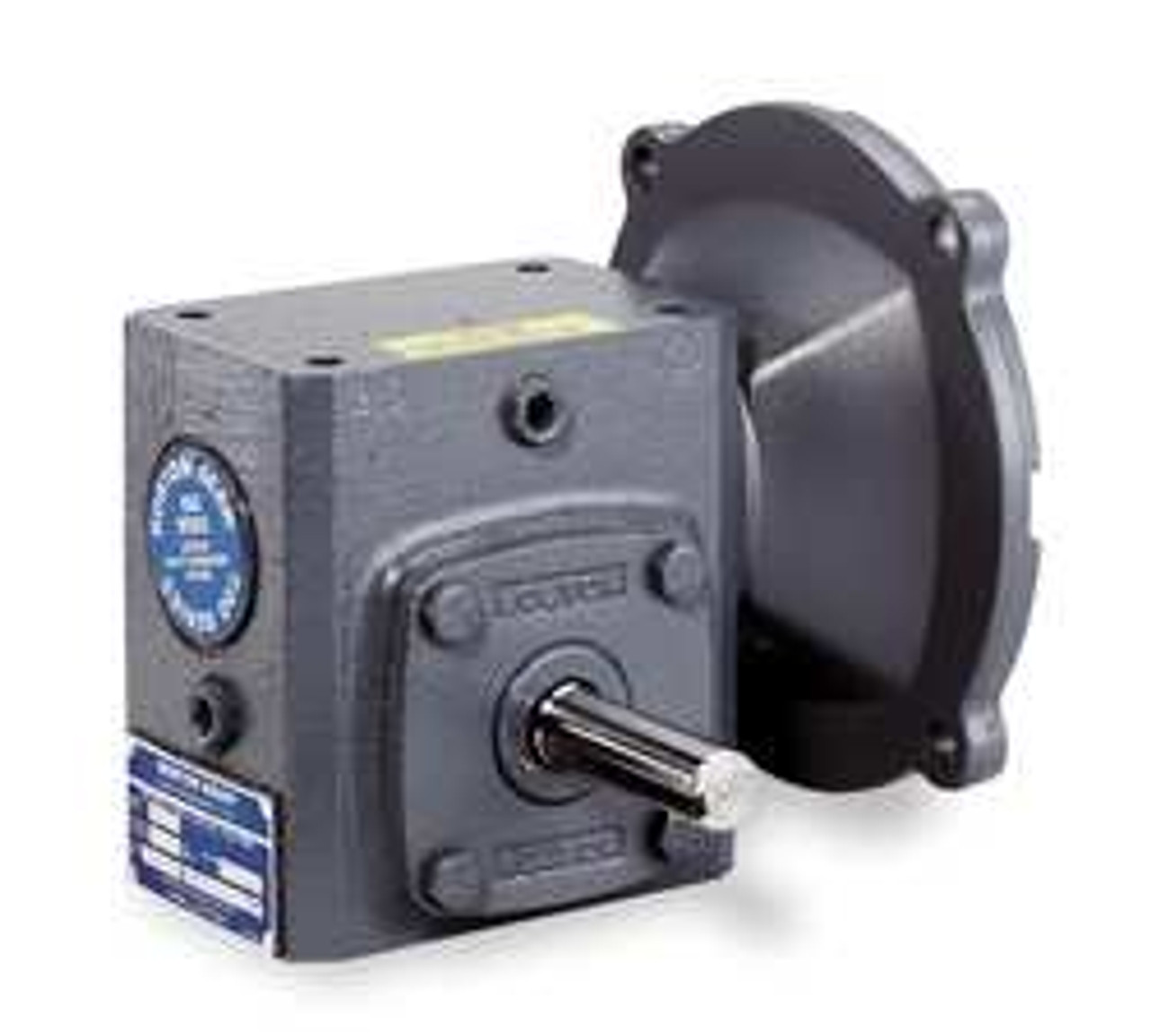

BOSTON GEAR F721-30-B5-G - SPEED REDUCER C-FACE 56C 30 1 - SPEED REDUCER C-FACE RIGHT ANGLE SHAFT ORIENTATION STANDARD DUTY 1750 INPUT RPM 58 NOMINAL OUTPUT RPM WORM CENTER DISTANCE 2.06 IN. BORE DIA 5/8 IN. 56C FRAME OVERHUNG LOAD 700 LB. 30 1 NOMINAL RATIO MAX INPUT HP 0.75 MAX TORQUE 624 IN.-LB. NUMBER OF STAGES 1 FORWARD/REVERSIBLE ROTATION OPTIONAL BASE ANY POSITION MOUNTING TAPERED ROLLER BEARINGS HARDENED STEEL PINION MATERIAL WORM GEAR TYPE CAST IRON HOUSING MATERIAL SINGLE OUTPUT OUTPUT SHAFT DIA 1 IN. - EQUAL TO G0889594
MANUFACTURER:
BOSTON GEAR
MANUFACTURER PART NUMBER:
F721-30-B5-G
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
27
CONTRACTOR PART NUMBER:
2510125912
MAS CONTRACT NUMBER:
47QSEA20D0043
