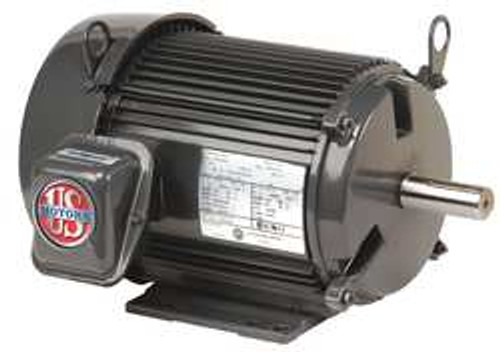

USEM U2P3DC MTR 3PH 2HP 1200RPM 208-230/460 EFF 88.5

USEM U2P3DC - MTR 3PH 2HP 1200RPM 208-230/460 EFF 88.5 - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 2 HP NAMEPLATE RPM 1200 184TC FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 6.4-6.2/3.1 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING FACE/BASE MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT DOWN MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.25 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ALUMINUM MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 16-2/8 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO G4525841
