Product Description

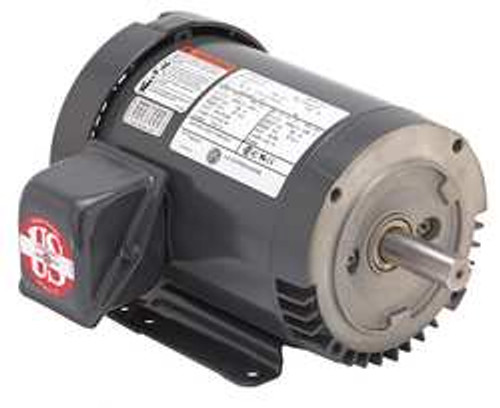

USEM U10P2D - MTR 3PH 10 HP 1800 208-230/460V EFF 91.7 - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 10 HP NAMEPLATE RPM 1800 215T FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 26.5-23.9/12 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING BASE MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT DOWN MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.25 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ALUMINUM MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 20-1/8 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO 23J874
MANUFACTURER:
USEM
MANUFACTURER PART NUMBER:
U10P2D
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
131
CONTRACTOR PART NUMBER:
2510198289
MAS CONTRACT NUMBER:
47QSEA20D0043
