Product Description

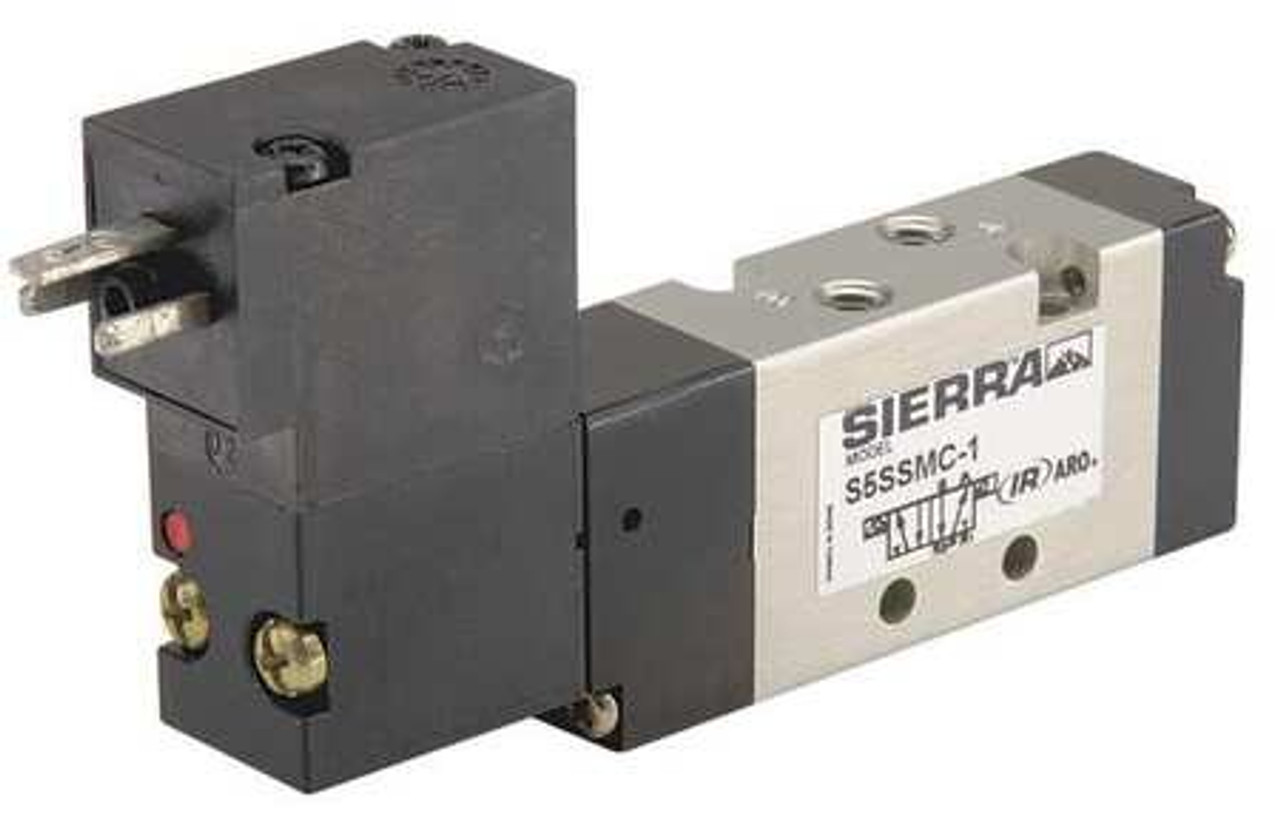

ARO S5SSMD-1 - SOLENOID AIR CONTROL 10-32 UNF 24VDC - SOLENOID AIR CONTROL VALVE VALVE WAYS AND POSITIONS 4-WAY/2-POSITION VOLTAGE 24VDC VALVE ACTUATOR / RETURN SOLENOID / SPRING PIPE SIZE 10-32 UNF MAX CFM - VALVES 9.00 OPERATIONAL PRESSURE RANGE 0 TO 115 PSI NEMA CLASSIFICATION NEMA 4 BODY STYLE BODY PORTED COEFFICIENT OF VOLUME 0.25 DIN CONNECTORS ELECTRICAL CONNECTIONS SHIFTING TECHNOLOGY SOLENOID/PILOT POWER CONSUMPTION 1.9 W AMBIENT TEMP RANGE 0 DEGREES TO 122 DEGREES F OVERRIDE NON-LOCKING PUSH OVERALL HEIGHT 1-3/4 IN. - EQUAL TO 2G633
MANUFACTURER:
ARO
MANUFACTURER PART NUMBER:
S5SSMD-1
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
TAIWAN, REPUBLIC OF CHINA
ORDER INCREMENT:
1
WEIGHT:
0.2
CONTRACTOR PART NUMBER:
2510227169
MAS CONTRACT NUMBER:
47QSEA20D0043
