Product Description

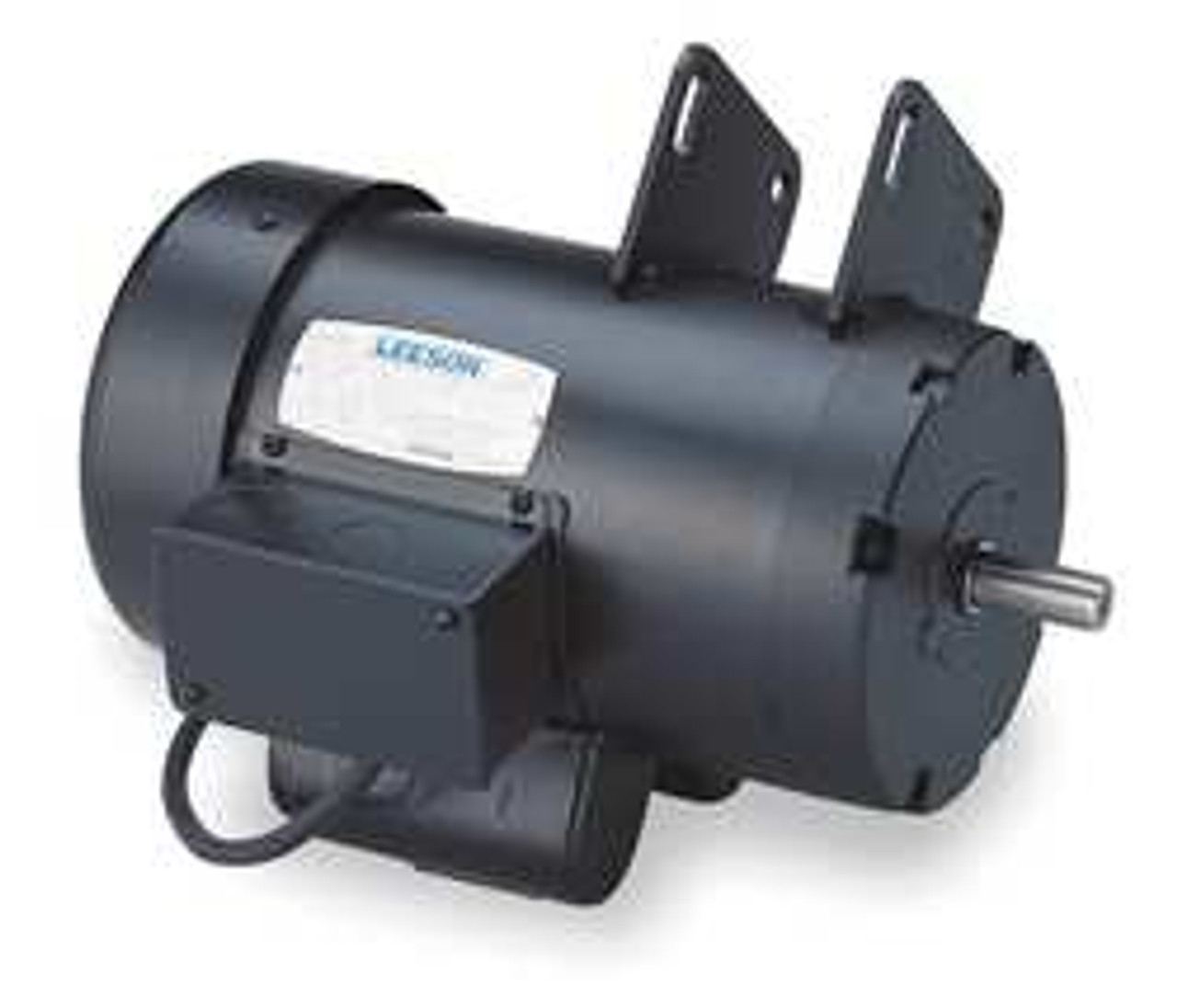

LEESON 120925.00 - SAW MOTOR 1-1/2 HP 3450 RPM 115/230V - TABLE SAW MOTOR CAPACITOR-START TOTALLY ENCLOSED FAN-COOLED 1-1/2 HP 3450 NAMEPLATE RPM 143Y FRAME VOLTAGE 115/230 60 HZ 1 PHASE 20.0/10.0 FULL LOAD AMPS MOUNTING SPECIAL BRACKET THERMAL PROTECTION NONE INSULATION CLASS B 1.00 SERVICE FACTOR BEARINGS BALL AMBIENT TEMPERATURE 40 DEGREES C CW/CCW ROTATION LENGTH LESS SHAFT 11 IN. SHAFT DIA 3/4 IN. SHAFT LENGTH 1-13/16 IN. STANDARDS UL RECOGNIZED (E57948) CSA CERTIFIED (LR33543) INCLUDES 50 IN LONG 14/3 POWER CORD LESS PLUG - EQUAL TO G3410136
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
120925.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
45.5
CONTRACTOR PART NUMBER:
2510260082
MAS CONTRACT NUMBER:
47QSEA20D0043
