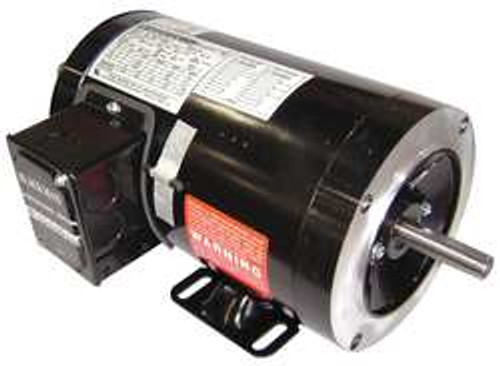

MARATHON 056H17E5305 VECTOR MOTOR 3 LB-FT 1 HP 230/460 V

MARATHON 056H17E5305 - VECTOR MOTOR 3 LB-FT 1 HP 230/460 V - VECTOR MOTOR 3-PHASE TOTALLY ENCLOSED NONVENTILATED 1 HP TORQUE 3 LB.-FT. NAMEPLATE RPM 1725 SPEED RANGE 1000 1 CT MAX SPEED 3600 RPM FRAME 56C MAX OPERATING FREQUENCY 120 HZ VOLTAGE 230/460 60 HZ 3 PHASE 3.0/1.5 FULL LOAD AMPS C-FACE MOUNTING HORIZONTAL MOUNTING POSITION CW/CCW ROTATION BALL BEARINGS 1.00 SERVICE FACTOR THERMAL PROTECTION NONE INSULATION CLASS F AMBIENT TEMPERATURE 40 DEGREES C NOMINAL EFFICIENCY 0.84 EFFICIENCY GROUP EPACT NEMA DESIGN A - EQUAL TO G4263287
