Product Description

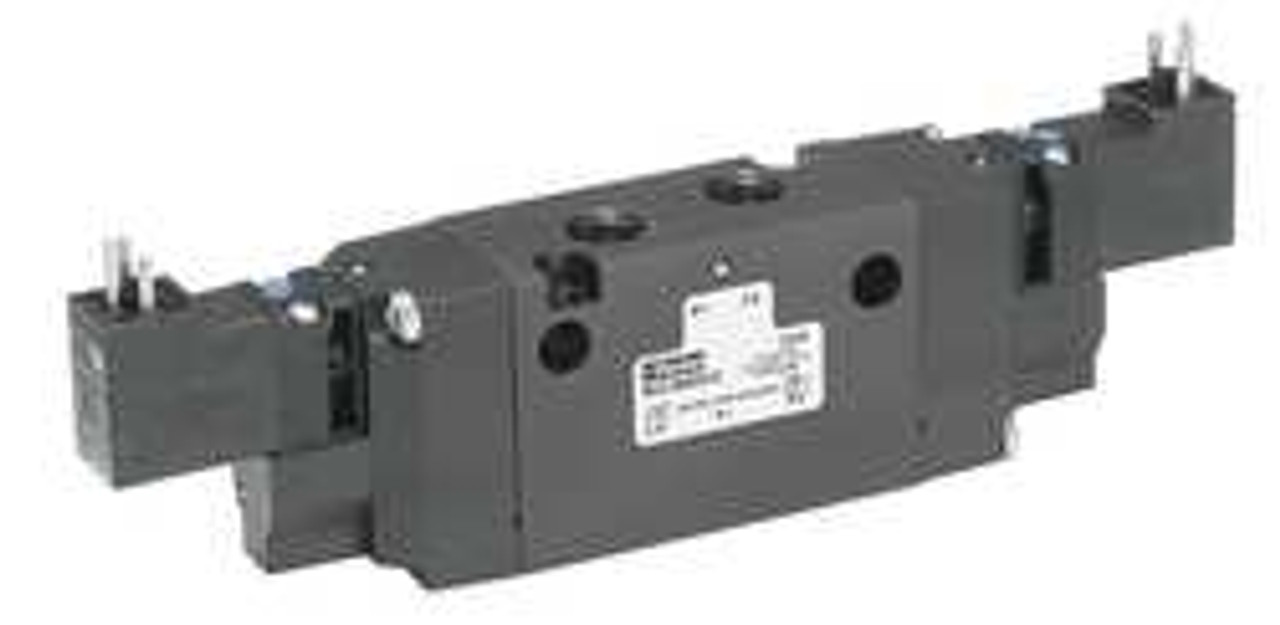

PARKER B360BB553C - SOLENOID AIR CONTROL VALVE 1/8 IN 120VAC - SOLENOID AIR CONTROL VALVE 4-WAY 3-POSITION OPEN CENTER POSITION ACTUATOR/RETURN SOLENOID/SOLENOID BODY STYLE BODY PORTED PIPE SIZE 1/8 IN. VOLTAGE 120VAC PILOT PORT SIZE 1/8 IN NPT COEFFICIENT OF VOLUME 0.6 15MM 3-PIN MALE DIN ELECTRICAL CONNECTIONS PRESSURE RANGE 20 TO 145 PSI AMBIENT TEMP RANGE 5 DEGREES TO 120 DEGREES F OVERRIDE NON-LOCKING FLUSH OVERALL HEIGHT 1-1/2 IN. OVERALL LENGTH 6-1/2 IN. OVERALL WIDTH 1 IN. NEMA CLASSIFICATION NEMA 4 STANDARDS CE CSA CUS - EQUAL TO 3FDW6
MANUFACTURER:
PARKER
MANUFACTURER PART NUMBER:
B360BB553C
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.4
CONTRACTOR PART NUMBER:
2510361346
MAS CONTRACT NUMBER:
47QSEA20D0043
