Product Description

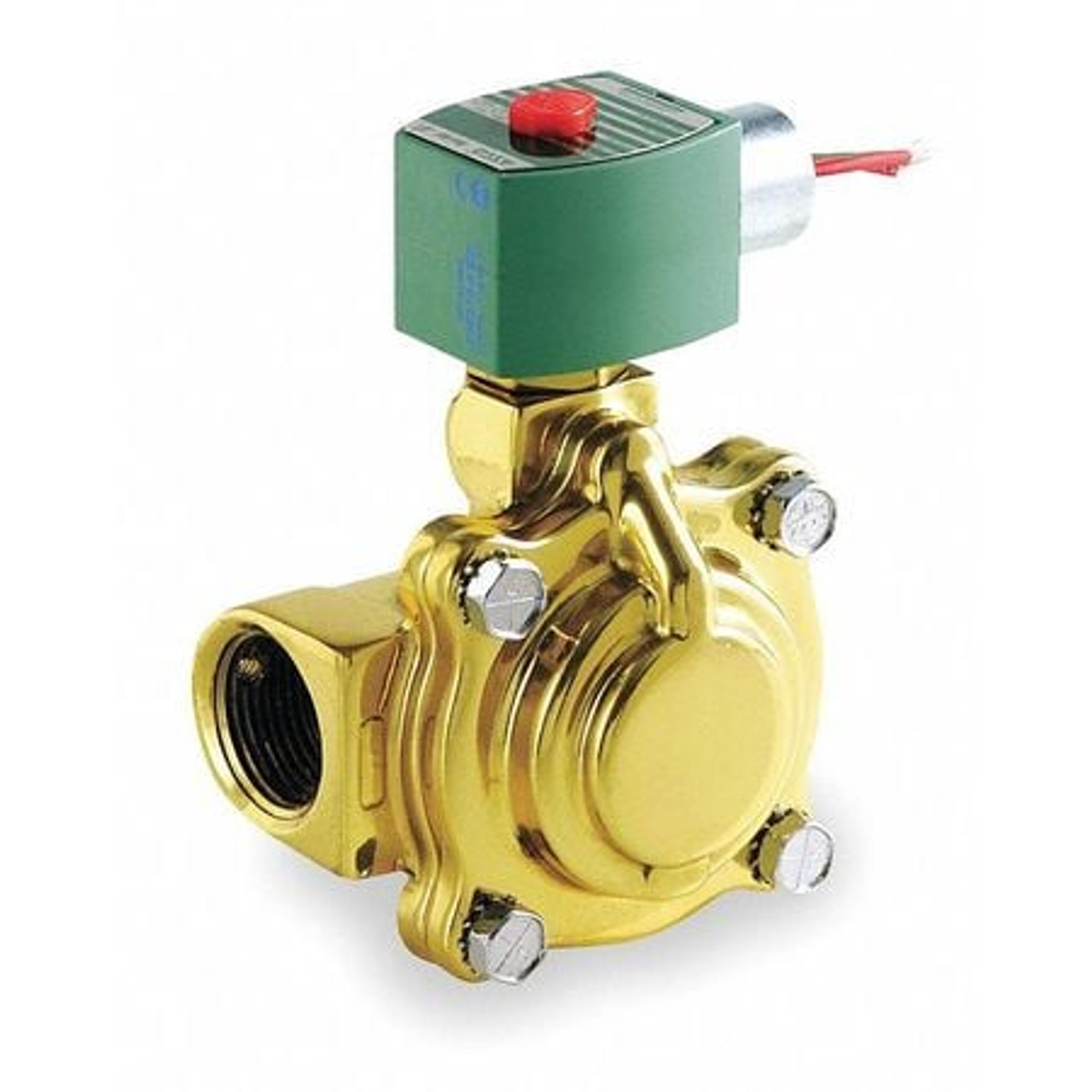

RED HAT EF8210G004 - SOLENOID VALVE 2/2 1 IN NC 120V BRASS - SOLENOID VALVE BODY MATERIAL BRASS MEDIA AIR/INERT GAS LIGHT OIL AND WATER 2-WAY/2-POSITION NORMALLY CLOSED PIPE SIZE 1 IN. ORIFICE DIA 1 IN. COEFFICIENT OF VOLUME 13.00 MIN OPERATING PRESSURE DIFFERENTIAL 5 PSI MAX OPERATING PRESSURE DIFFERENTIAL AIR/INERT GAS 150 PSI MAX OPERATING PRESSURE DIFFERENTIAL LIGHT OIL 100 PSI MAX OPERATING PRESSURE DIFFERENTIAL WATER 150 PSI COIL INSULATION CLASS F NEMA RATING 3 4 4X 7 9 MAX FLUID TEMP 180 DEGREES F VOLTAGE 120VAC 60 HZ - EQUAL TO 3UK61
MANUFACTURER:
RED HAT
MANUFACTURER PART NUMBER:
EF8210G004
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
4.5
CONTRACTOR PART NUMBER:
2510430420
MAS CONTRACT NUMBER:
47QSEA20D0043
