Product Description

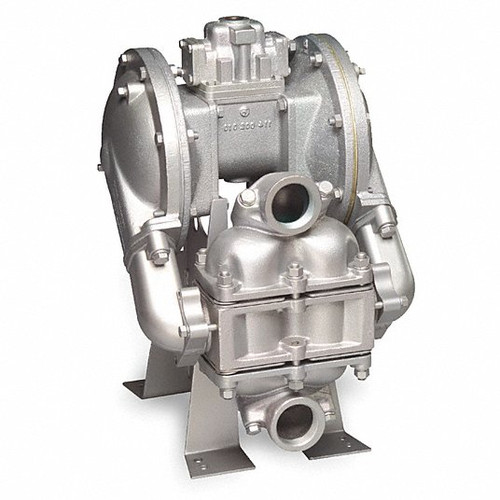

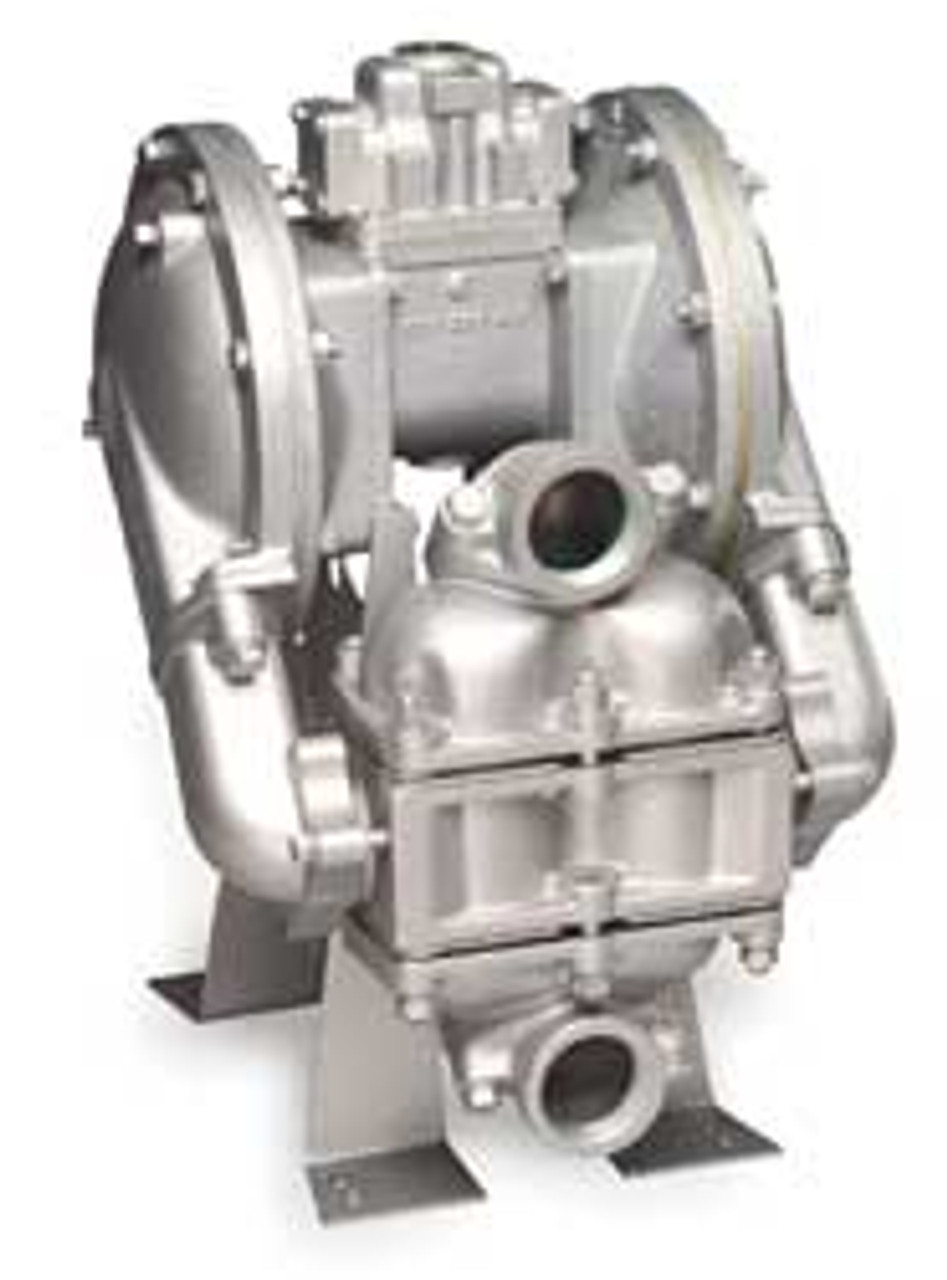

SANDPIPER HDB2 DGN3CI - DOUBLE DIAPHRAGM PUMP AIR OPERATED 2 IN. - DOUBLE DIAPHRAGM PUMP OPERATION TYPE AIR OPERATED VALVE TYPE BALL BODY MATERIAL CAST-IRON INLET/OUTLET SIZE 2 IN. CONNECTION STYLE NPT AIR INLET SIZE 3/4 IN FNPT MAX FLOW GPM 135 MAX OPERATING PRESSURE 125 PSI MAX TEMP 220 DEGREES F DIAPHRAGM MATERIAL PTFE - NEOPRENE BACKUP BALL MATERIAL PTFE CHECK SEAT MATERIAL PTFE MAX DIA SOLIDS 3/8 IN. MANIFOLD CONNECTION SINGLE LENGTH 16-13/16 IN. WIDTH 15-1/2 IN. HEIGHT 23-1/4 IN. SELF-PRIMING DRY 20 FT. SELF-PRIMING WET 25 FT. - EQUAL TO 6WY90
MANUFACTURER:
SANDPIPER
MANUFACTURER PART NUMBER:
HDB2 DGN3CI
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
147
CONTRACTOR PART NUMBER:
2510455410
MAS CONTRACT NUMBER:
47QSEA20D0043
