Product Description

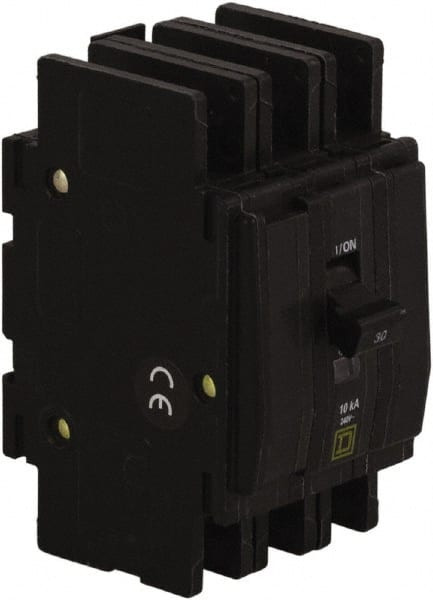

SQUARE D QOU345 - UNIT MOUNT CIRCUIT BREAKER QOU 3P 45A - UNIT MOUNT CIRCUIT BREAKER CIRCUIT BREAKER TYPE STANDARD NUMBER OF POLES 3 45 AMPS AC VOLTAGE RATING 240VAC DC VOLTAGE RATING 48VDC AIR @ 120VAC 10KA AIR @ 240VAC 10KA AIR @ 48VDC 5KA PHASE 3 TERMINAL CONNECTION SLOTTED BOX LUG (REVERSIBLE LINE AND LOAD) SERIES QOU MIN WIRE SIZE 14 AWG MAX WIRE SIZE 2 AWG LENGTH 4.05 IN. WIDTH 2.25 IN. DEPTH 2.98 IN. STANDARDS UL CSA HACR IEC - EQUAL TO G2017364
MANUFACTURER:
SQUARE D
MANUFACTURER PART NUMBER:
QOU345
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
1.05
CONTRACTOR PART NUMBER:
2510458945
MAS CONTRACT NUMBER:
47QSEA20D0043
