Product Description

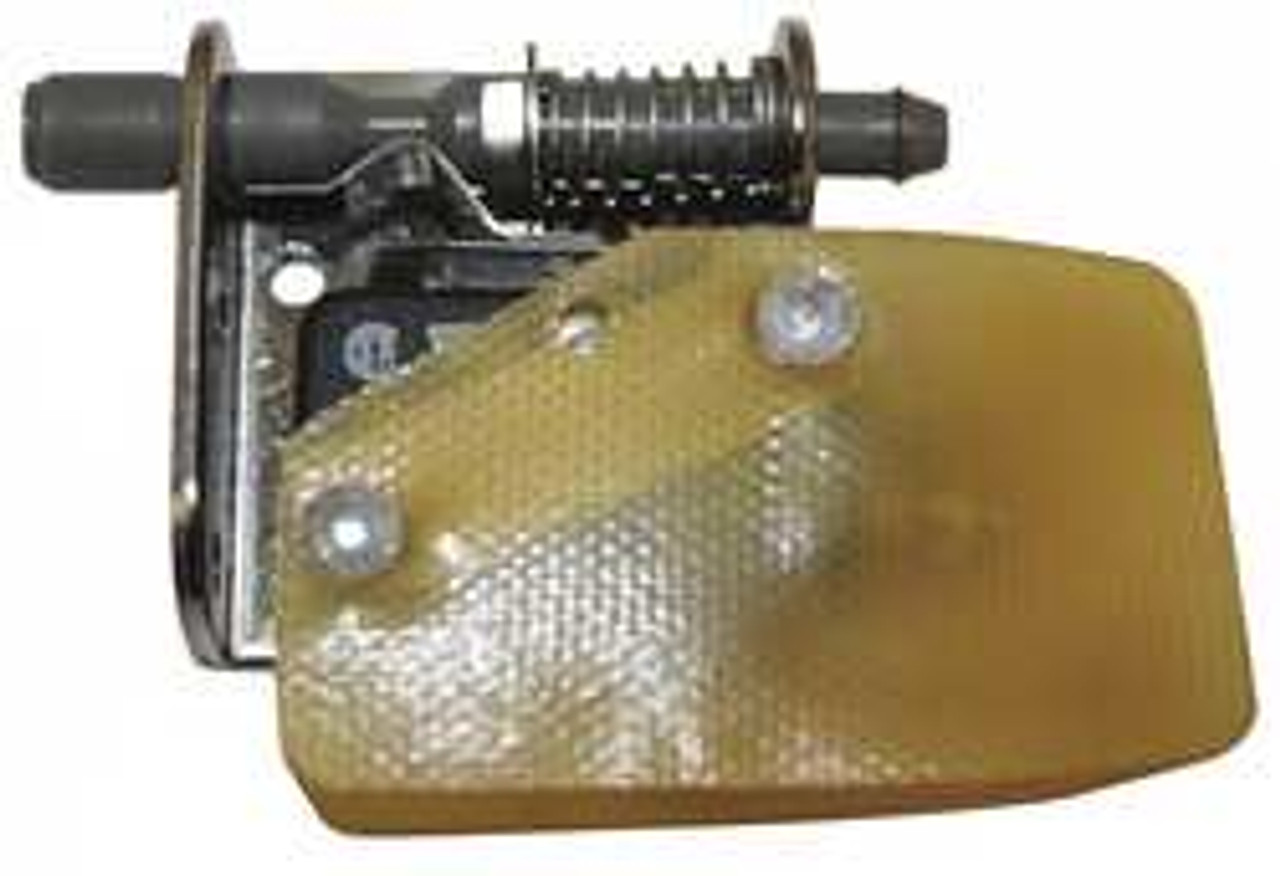

HONEYWELL 22AC2-UL - DOOR SWITCH SPDT SCREW TERMINALS 15A - DOOR SWITCH CONTACT FORM SPDT SWITCH FUNCTION 3 POSITION PUSH MOMENTARY PULL MAINTAINED SCREW TERMINALS AC CONTACT RATING 15A @ 125/250V AC DC CONTACT RATING 1/2A @ 125V DC 1/4A @ 250V DC HP 1/2 HP @ 125/250V AC TYPE OF ACTUATOR PUSH ROD PLUNGER ACTUATOR MATERIAL POLYESTER DEPTH 0.5 IN HEIGHT 1.5 IN LENGTH 1.5 IN OPERATING TEMP RANGE -65 DEGREES TO 180 DEGREES F STANDARDS CSA UL INCLUDES STAINLESS STEEL BRACKET - EQUAL TO 23Z967
MANUFACTURER:
HONEYWELL
MANUFACTURER PART NUMBER:
22AC2-UL
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
0.005
CONTRACTOR PART NUMBER:
2510704879
MAS CONTRACT NUMBER:
47QSEA20D0043
