Product Description

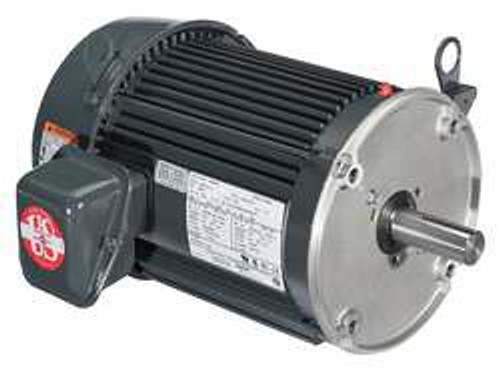

USEM 29AJ09 - GP MOTOR 3-PHASE TEFC 7-1/2HP 60/50HZ - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 7-1/2 HP NAMEPLATE RPM 3530 213TC FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 19.9-17.8/8.9 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING FACE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.25 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ALUMINUM MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 18-5/8 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO 29AJ09
MANUFACTURER:
USEM
MANUFACTURER PART NUMBER:
29AJ09
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
105
CONTRACTOR PART NUMBER:
2510719468
MAS CONTRACT NUMBER:
47QSEA20D0043
