Product Description

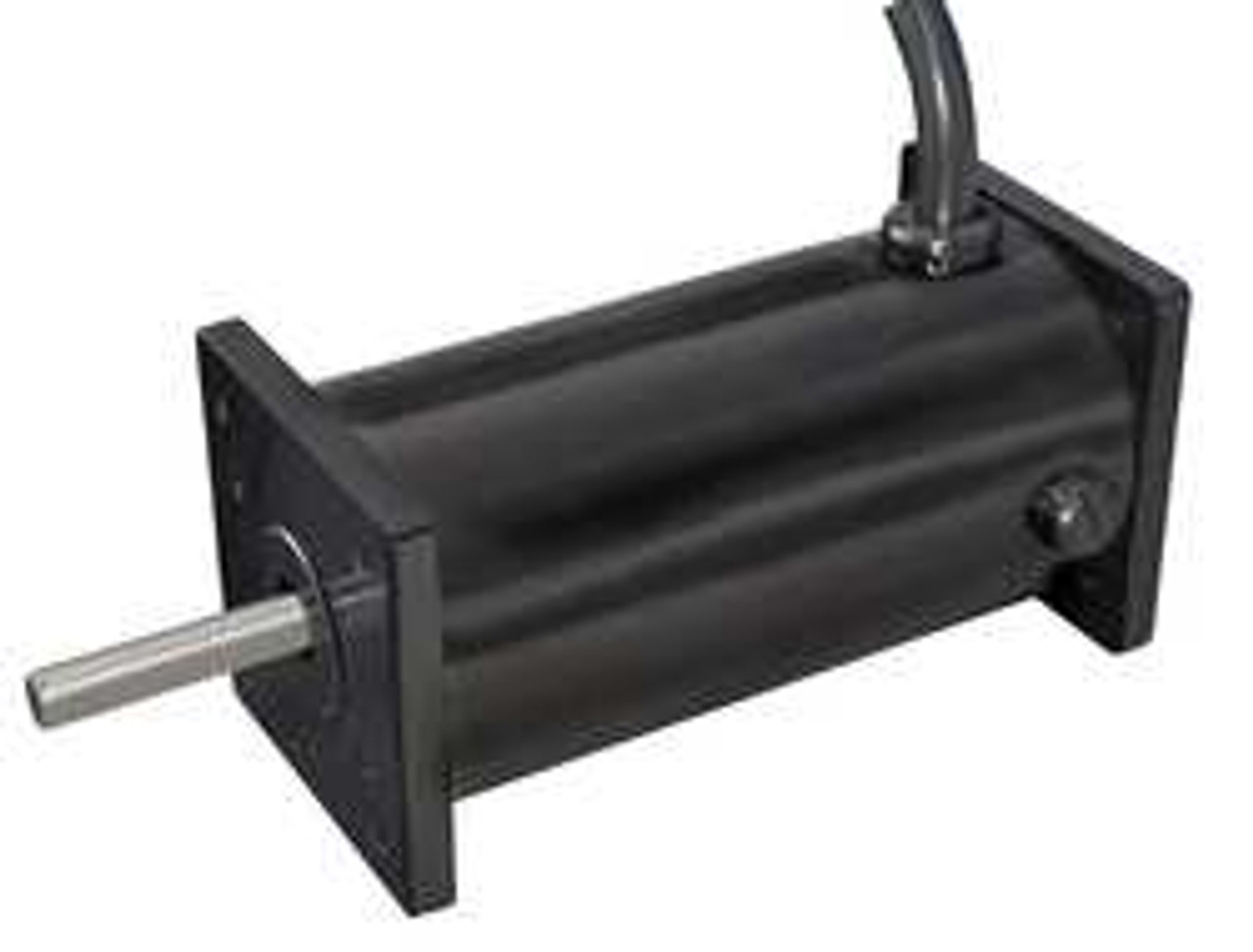

DAYTON 3XE22 - DC MOTOR PM TENV 1/27 HP 1800 RPM 90VDC - DC PERMANENT MAGNET MOTOR PERMANENT MAGNET DC 1/27 HP MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED NONVENTILATED 1800 NAMEPLATE RPM VOLTAGE 90VDC FULL LOAD AMPS 0.5 FULL LOAD TORQUE 1.3 IN.-LB. FRAME NONSTANDARD MOTOR MOUNTING TYPE FACE/BASE MOTOR THERMAL PROTECTION NONE B INSULATION CLASS BEARINGS BALL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 6-7/16 IN. 4-15/16 IN LENGTH LESS SHAFT SHAFT DIA 5/16 IN. SHAFT LENGTH 1-1/2 IN. - EQUAL TO G2850276
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
3XE22
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
4
CONTRACTOR PART NUMBER:
2510745409
MAS CONTRACT NUMBER:
47QSEA20D0043
