Product Description

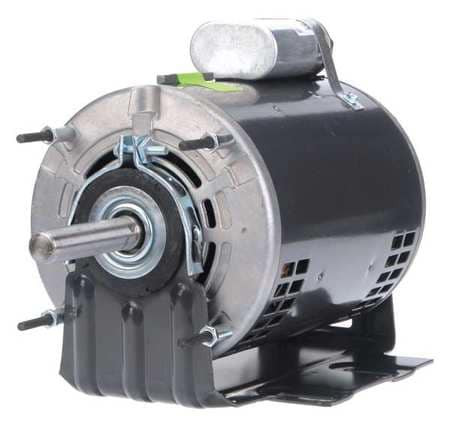

DAYTON 4YU24 - MOTOR PSC 1/3 HP 1140 RPM 115V 56Z ODP - DIRECT DRIVE BLOWER MOTOR PSC MOTOR TYPE OPEN DRIPPROOF ENCLOSURE 1/3 HP 1100 NAMEPLATE RPM VOLTAGE 115 4.7 FULL LOAD AMPS 60 HZ 1 PHASE 56Z FRAME SERVICE FACTOR 1.0 MAX AMBIENT TEMP 40 DEGREES C INSULATION CLASS B DUTY CONTINUOUS NUMBER OF SPEEDS 1 MOUNTING CRADLE/STUD SHAFT ORIENTATION ALL ANGLE BEARINGS BALL THERMAL PROTECTION AUTO ROTATION CW/CCW BODY DIA 5-5/8 IN. LENGTH LESS SHAFT 8-19/32 IN. SHAFT DIA 5/8 IN. SHAFT LENGTH 2-3/4 IN. - EQUAL TO G0441016
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
4YU24
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
15.45
CONTRACTOR PART NUMBER:
2510772935
MAS CONTRACT NUMBER:
47QSEA20D0043
