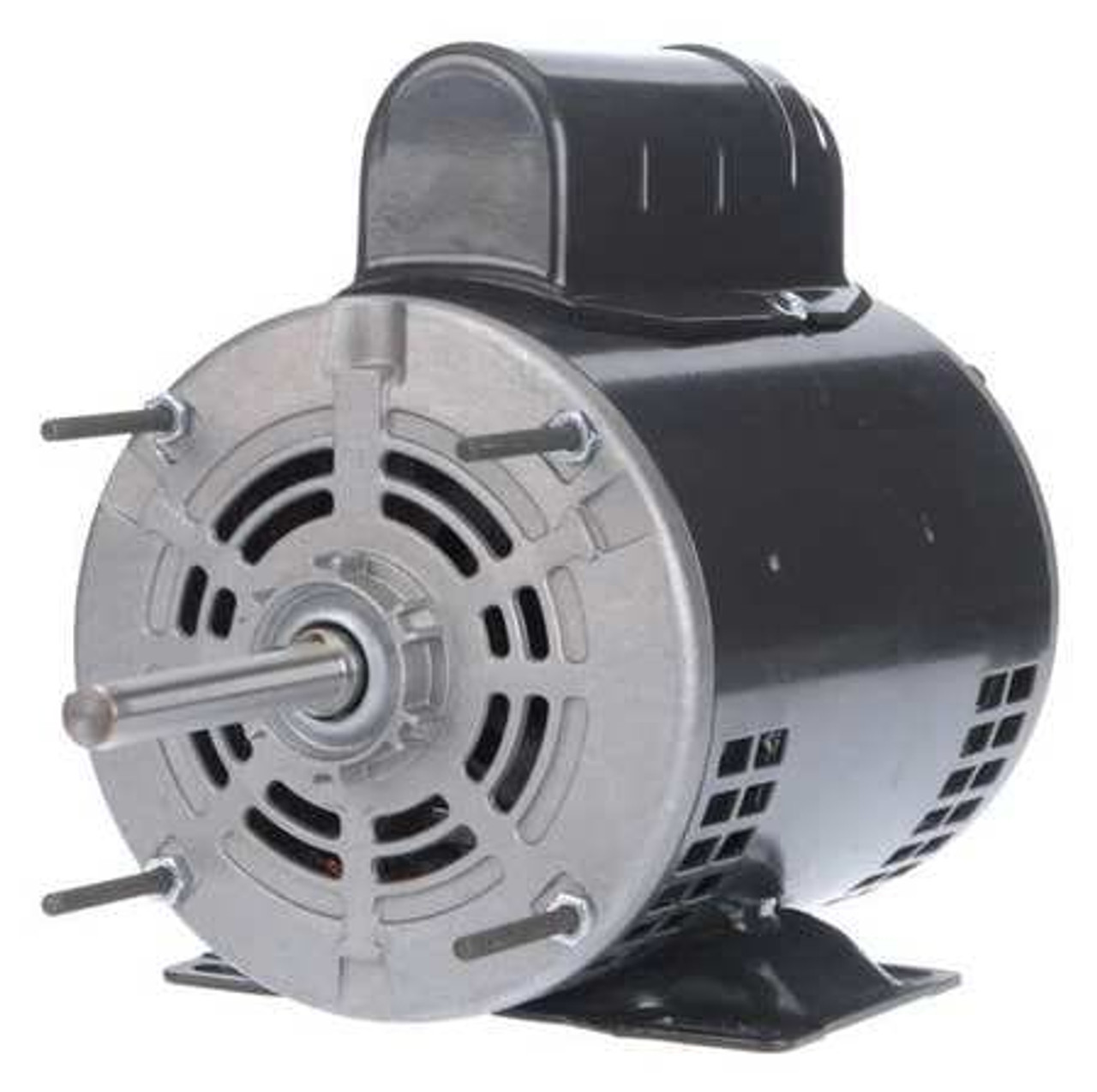

DAYTON 4YU28 MOTOR PSC 1/2 HP 1725 115/230V 48Z OAO

DAYTON 4YU28 - MOTOR PSC 1/2 HP 1725 115/230V 48Z OAO - DIRECT DRIVE BLOWER MOTOR PSC MOTOR TYPE OPEN AIR-OVER ENCLOSURE 1/2 HP 1725 NAMEPLATE RPM VOLTAGE 115/230 6.0/3.0 FULL LOAD AMPS 60 HZ 1 PHASE 48Z FRAME SERVICE FACTOR 1.0 MAX AMBIENT TEMP 40 DEGREES C INSULATION CLASS B DUTY CONTINUOUS AIR OVER NUMBER OF SPEEDS 1 MOUNTING BASE/STUD SHAFT ORIENTATION ALL ANGLE BEARINGS BALL THERMAL PROTECTION AUTO ROTATION CW/CCW BODY DIA 5-5/8 IN. LENGTH LESS SHAFT 8-3/8 IN. SHAFT DIA 1/2 IN. SHAFT LENGTH 3 IN. - EQUAL TO 4YU28
